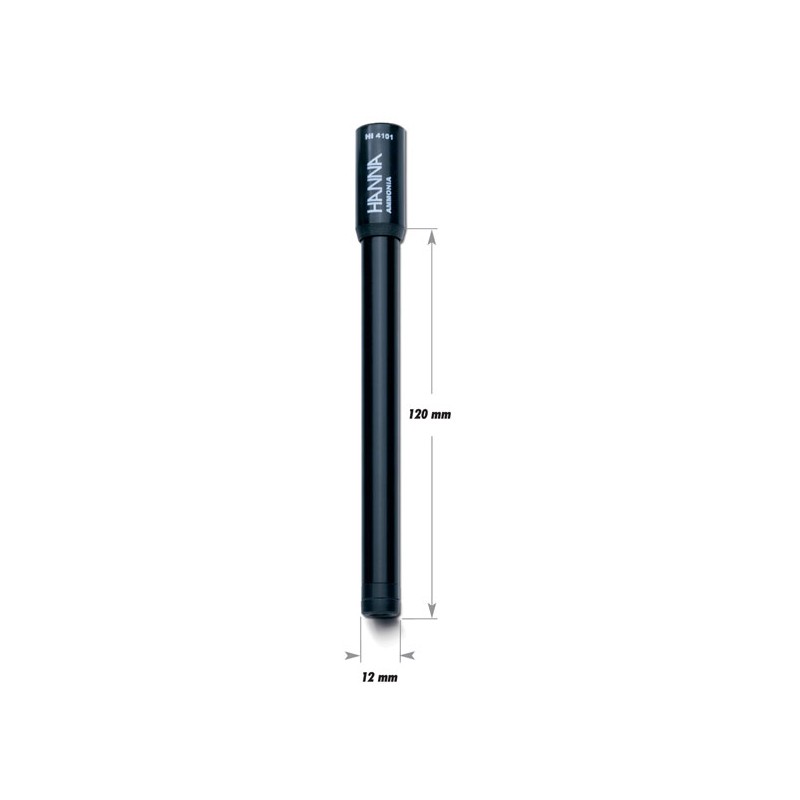

HI-4101 AMMONIA COMBINATION ISE ELECTRODE
HI-4101
The HI-4101 is an Ammonia combination Ion Selective Electrode ideal for the detection of ammonium and checking for Ammonia in wine, beer, water, waste water and soil/agriculture.
The HI-4101 is a gas sensing, combination ion selective electrode (ISE) for the determination of ammonia (NH3) in solution. Its PTFE membrane allows for ammonia gas diffusion into a thin layer of internal electrolyte. The internal sensing elements are within a durable Delrin® body.
- Replaceable PTFE membranes
- Durable Delrin® body
- Detection from 0.02 to 17,000 mg/L NH3
The HI-4101 ammonia ion selective electrode is a complete potentiometric cell that contains both a silver/silver chloride (Ag/AgCl) reference and a pH measurement element. These elements are housed within a plastic body with a chloride ion-containing electrolyte, and are isolated from the sample by a gas permeable membrane made of polytetrafluoroethylene (PTFE).
Ammonia can exist in two different forms: ammonia as a gas (NH3) and ammonium as the ionised form (NH4+). The concentration of each form in a solution is dependent on the solution’s pH. The pKa is the pH value at which ammonia and ammonium are in equilibrium. The pKa of the ammonia/ammonium relationship is 9.24; thus, at a pH of 9.24 there will be an equal concentration of ammonia and ammonium. As pH decreases, becoming more acidic, the concentration of ammonium increases and ammonia decreases. The opposite occurs as the pH increases. The actual concentration for either species can be determined by knowing the concentration of ammonia and the pH of the sample.
For the HI-4101 to measure ammonia accurately, it is important that the pH of the calibration standards and sample be raised with the ammonia ionic strength adjuster (ISA) solution. The ammonia ISA raises the pH of the solution to pH 11. Any ammonium present in the calibration standards and sample will be converted to ammonia, ensuring an accurate measurement. The HI-4101 ammonia gas sensing ISE can measure from 1µM (0.02 mg/L) to 1M (17,000 mg/L).
BNC Connection – BNC is one of the most commonly used connector types in pH meters and electrodes. Compatible with any meter or electrode that uses BNC connectors.
Read More
| Parameter | Ammonia | |
| Type | Gas-Sensing; Combination | |
| Measurement Range | 1M to 1X 10-6M 17000 to 0.02 ppm | |
| Optimum pH Range | >11 | |
| Temperature Range | 0 to 40°C | |
| Approximate Slope | -56 | |
| Body O.D. | 12 mm | |
| Insertion Length | 120 mm | |
| Body Material | Delrin | |
| Cable | 1m coaxial | |
| Connector | BNC | |
| Possible Applications | Determination of ammonium, ammonia in wine, beer, water, waste water and soil |
