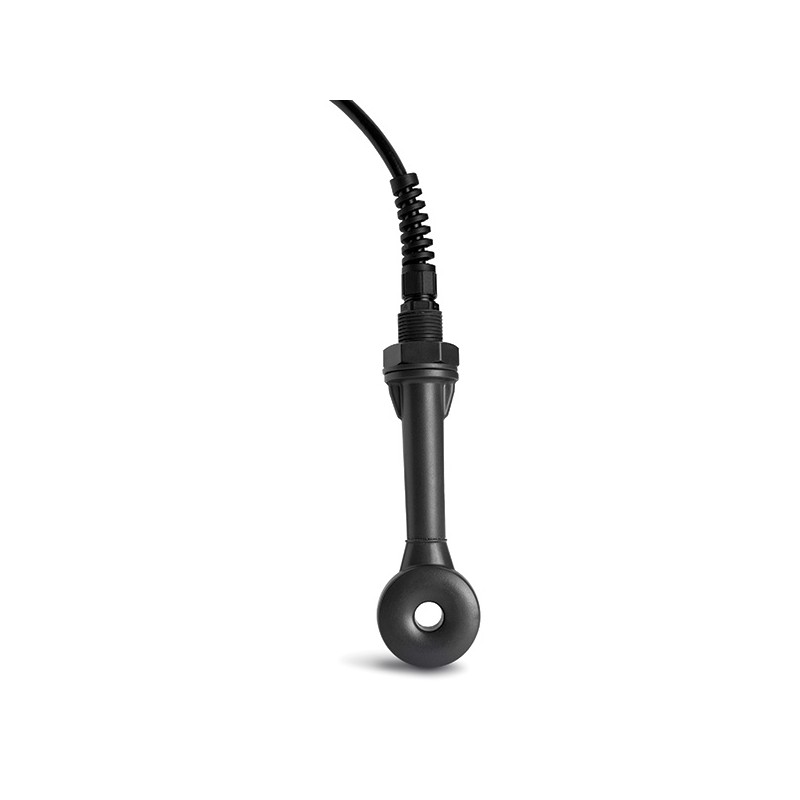

HI-7650-1105 INDUCTIVE CONDUCTIVITY PROBE, ABS BODY, PT100 TEMPERATURE SENSOR, 5M CABLE
HI-7650-1105
This inductive conductivity probe is designed to measure conductivity in industrial applications. With a durable PVC body and optional Pt100 temperature sensor, you can count on this electrode to stand up to your process environment.
EC
Full Description
Specification
Print Page
Full Description
Specification
Inductive Conductivity Probe, ABS body, pt100 temperature sensor 10 mt cable
- Measurement is based on inductive coupling of two toroidal transformers by the liquid
- Models with built-in temperature sensor for Automatic Temperature Compensation
- Built for everyday, demanding use in industrial applications
The advantages of using this kind of probe
- Inductive Conductivity Probe - Allows conductivity measurements without any electrical contact between electrodes and process fluid.
- Models with Built-in Pt100 Temperature Sensor - No Electrodes - Common problems such as polarization and contamination are eliminated and will not affect the performance of the electrodeless sensor.
- Variety of Cable Lengths - Probe models vary in cable length to fit any of your process needs.
- PVC Body - This rugged material is ideal for indoor as well as outdoor measurements.
- IP67 Rating - Fully protected from dust (6) and can also withstand being submerged in 1m (about 3.3 feet) of static water for up to 30 mins (7).
Read More
| Description | Inductive Conductivity Probe | |
| Conductivity Measuring Accuracy | ±2% f.s. | |
| Conductivity Measuring Range | 0 to 2000 mS/cm | |
| Temperature Sensor Type | None, Pt100 (depending on model ) | |
| Cell Constant | approx. 2.4 cm-1 | |
| Temperature Response | 90% of the final value, approximately 10 minutes | |
| Overall Length | 40 x 190 x 55 mm (1.57 x 7.48 x 2.16”) ; head: 32 x OD 55 mm (1.25” x OD 2.16”n) | |
| Required Pipe Diameter | >80 mm (consider installation factor for pipe with diameter < 125 mm) |
