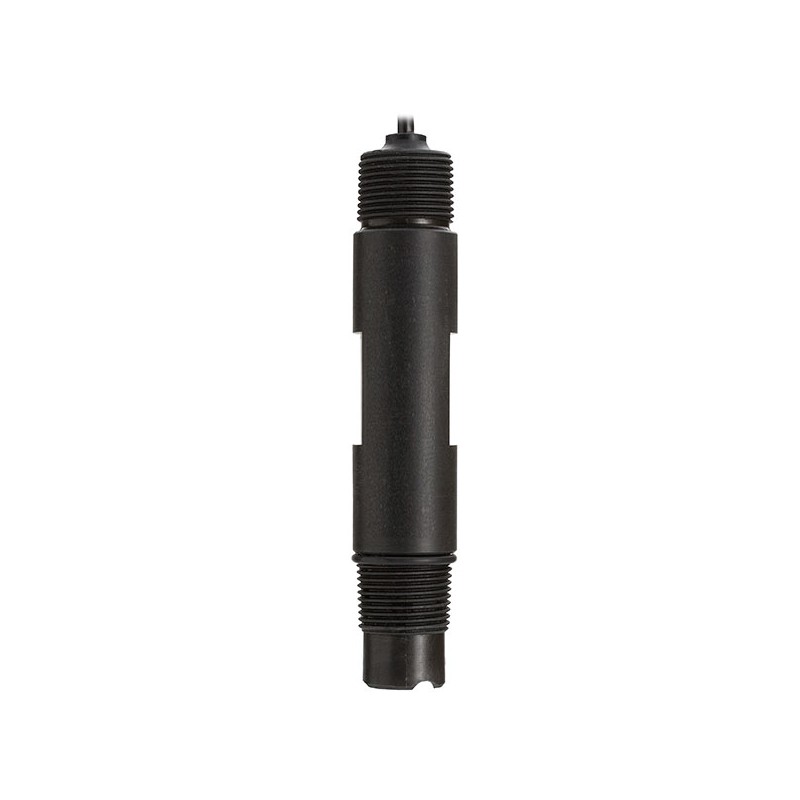

HI-1016-3005 pH electrode with ceramic junction, High temperature glass bulb

Reference: HI-1016-3005

HI-1016-3005 pH electrode with ceramic junction, high temperature glass bulb.

View

Full Description Specification Print Page

Antal

Pris

498,39 € (exc.VAT)

622,99 € (inkl. moms)

Full Description Specification

Hanna presents a series of combination pH electrodes incorporating over 20 years of electrode manufacturing experience.

The most advanced feature of this series is the electrode shape with a flat tip, virtually eliminating deposits that can foul the electrode, significantly reducing necessary maintenance. This characteristic makes flat tip electrodes ideal for continuous in-line monitoring and for solutions containing aggressive chemicals.

Self-cleaning flat tipped sensor for significantly reduced maintenance
Provided with an internal matching pin that can avoid typical problems caused by grounding loop current
3/4” NPT external thread on both ends for easy installation

Junction

Three junction types are available:

Annular non-clogging PTFE junction, for testing solutions with high content of suspended solids or for high pressure installation
Open junction, ideal for wastewater analysis
Ceramic junction

Connection Type

Electrodes are wired for direct connection to a transmitter or process controller, or with the standard BNC connector.

Glass Sensor

Hanna has developed four types of specialised glass. First is a durable sensor glass for general purpose, industrial use. This glass can withstand the stress of daily use. The remaining types of electrode glass allow continuous monitoring in highly acidic solutions containing fluoride ions, as well as high or low temperature process and streams significantly increase the electrode life.

Built-in Amplifier

Models with a built-in amplifier are necessary for long distance measurements, where it is not possible to install a transmitter. The internal amplifier can be powered directly from select Hanna process controllers or a power source that supplies the appropriate voltage.

Temperature Sensor

The pH electrodes with built-in 3-wire Pt100 or Pt1000 temperature sensor allow for the temperature compensation of pH readings as well as temperature measurements.
