HI-6000-1 PH/ORP MODULE FOR HI-6000 SERIES BENCH MULTIPARAMETER
HI6000-1

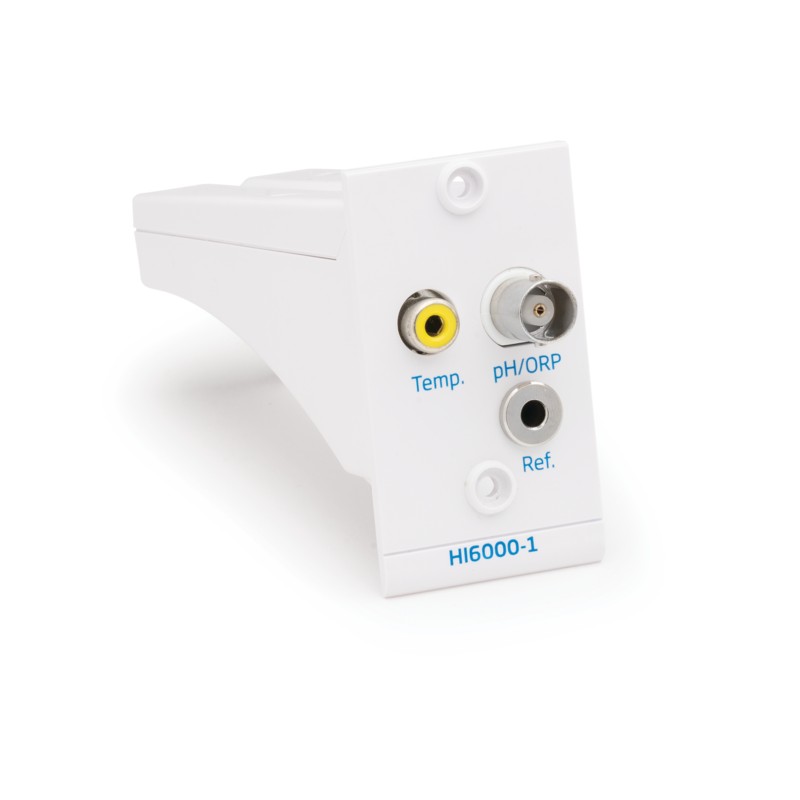

The HI6000-1 module measures pH, ORP and temperature.

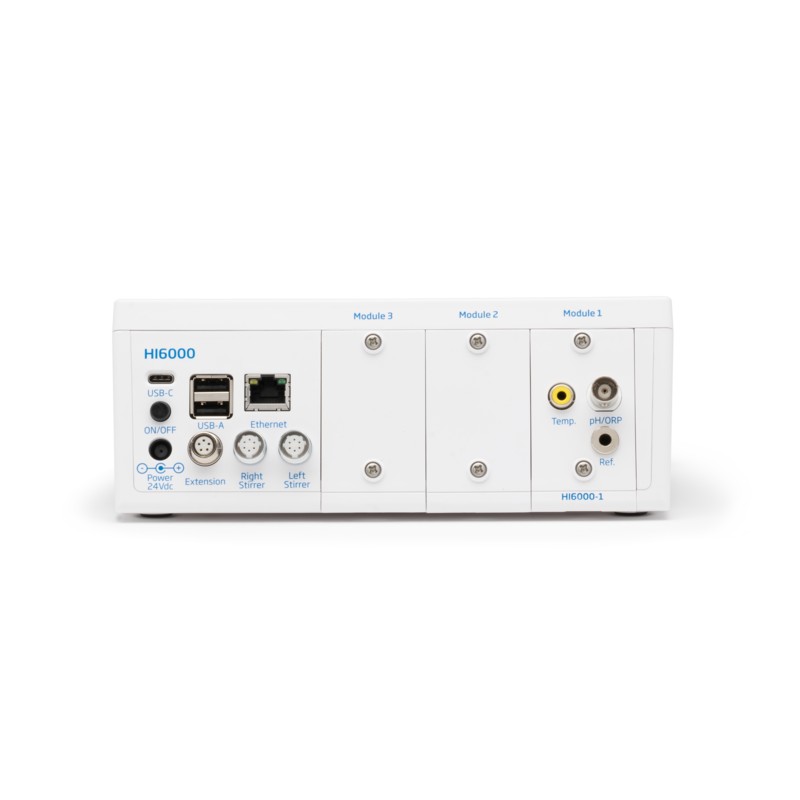

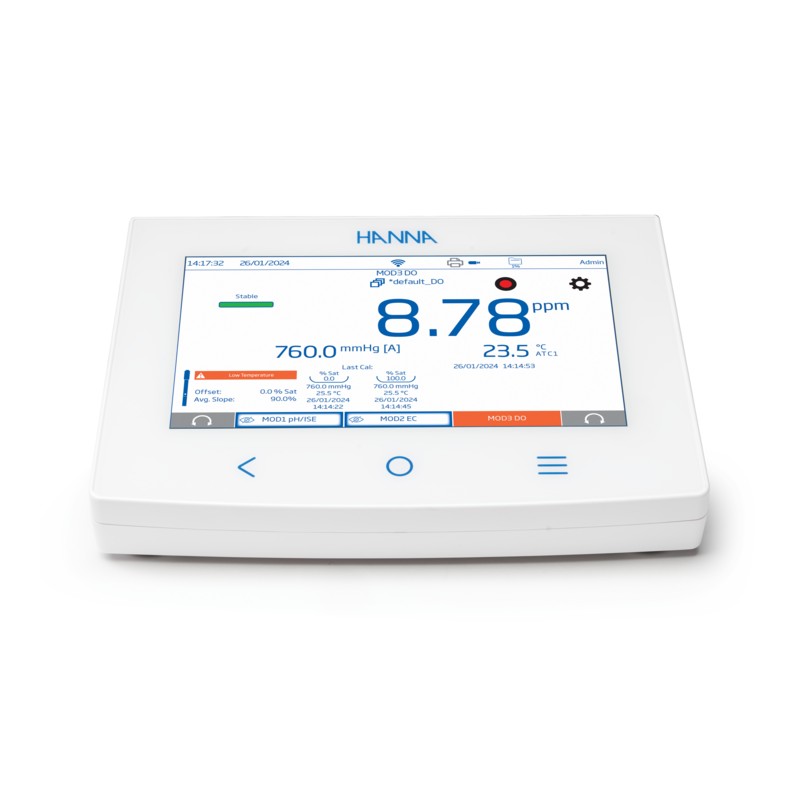

The HI6000-1 module measures pH, ORP and temperature with HI-6000 modular multiparameter meter system.
Measurement
• Choice of Measurement Unit
• pH ( HI-6000-1) – pH, mV
• ORP (HI-6000-1) – mV, Rel.mV
Calibration
• pH calibration using
• Up to five Hanna Instruments pH buffers (pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01 and 12.45)
• Up to five custom buffers
• mV calibration using a single point to calibrate offset.
Recommended probes For pH measurements

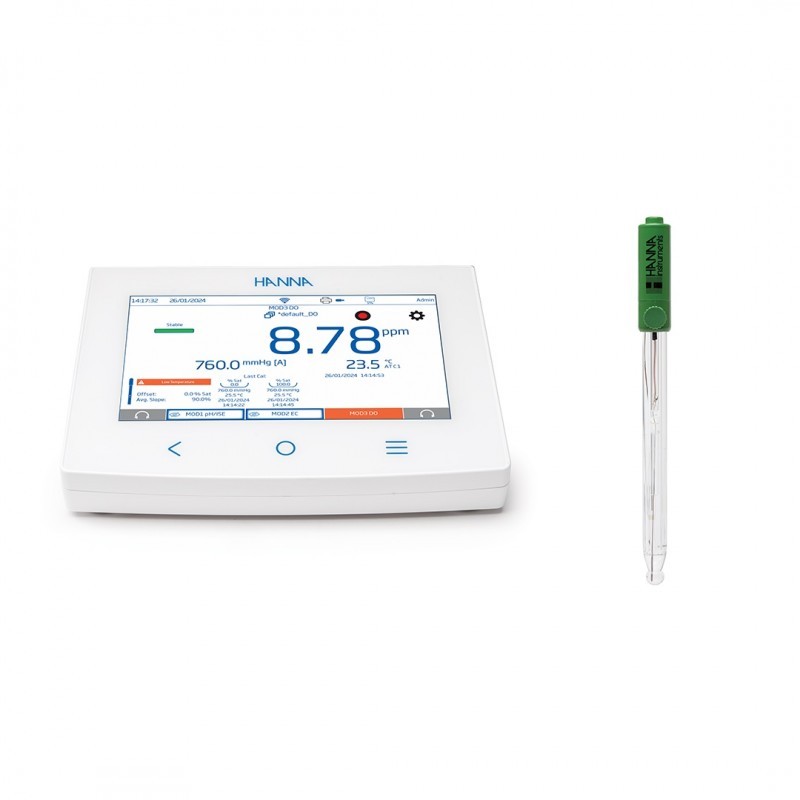

Hanna recommends the HI1131B double junction combination pH electrode, together with HI7662-TW temperature probe for use with HI-6000-1 modules.
HI1131B is a glass body, double junction, refillable pH electrode with an indicating sensor made of high temperature (HT) glass. The double junction reference and HT glass design allow the electrode to be used in a wide variety of applications. Probe connection to the unit is secured through a galvanically isolated BNC connection.
HI7662-TW stainless steel temperature probe allows the meter to automatically temperature compensate (ATC) pH measurements
Read More
| Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH | |
| Resolution | 0.1 pH; 0.01 pH; 0.001 pH | |
| Accuracy | ±0.1 pH; ±0.01 pH; ±0.002 pH (±1 last significant digit) | |
| Temperature Compensation | Automatic or manual | |
| mV | ||
| Range | -2000.0 mV to 2000.0 mV | |
| Resolution | 1 mV; 0.1 mV | |
| Accuracy | ±0.2 mV ±1 last significant digit | |
| Temperature | ||
| Range | -20.0 to 120.0 °C; -4.0 to 248.0 °F; 253.0 to 393.0 K | |
| Resolution | 0.1 °C / 0.1 °F / 0.1 K | |
| Accuracy | ±0.2 °C / ±0.4 °F / ±0.2 K | |
| Relative mV offset range | ±2000.0 mV | |
| pH Calibration | ||
| Calibration points | Up to 5 | |
| Type | Automatic; Semiautomatic; Manual | |
| Standard buffers | Hanna and NIST - pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 | |
| Custom buffers | Up to 5 | |
| Custom group | Up to 5 | |
| 1st calibration point | Offset or Points (user setting) | |
| Temperature User Calibration | Single point, adjustable; Isopotential point: -2.000 to 20.000pH |
