HI-5313 PEI BODY REFERENCE ELECTRODE FOR FC301B
HI-5313
Reference electrode with ceramic junction.
1m cable
4mm banana connector
Full Description
Specification
Print Page
Full Description
Specification

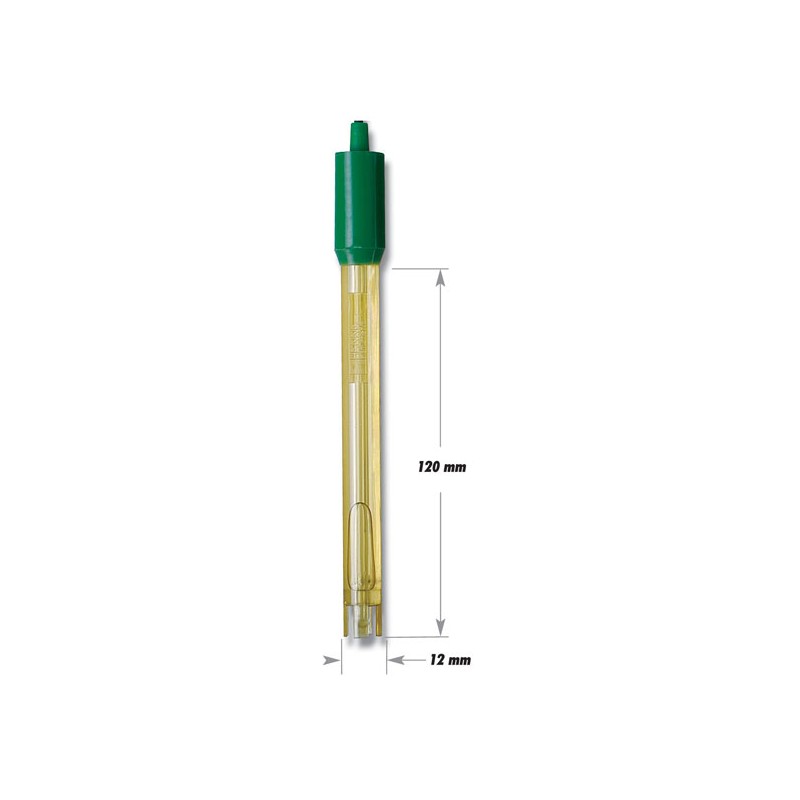

The HI-5313 is a PEI body, refillable, single junction, half-cell reference electrode with a 4 mm banana connector. This electrode has a single ceramic junction in the outer reference cell and is made for use in temperatures ranging from -5 to 60°C.
This design consideration is made for use with the FC301B fluoride half-cell ion selective electrode.
| Reference | Single, Ag/AgCl | |
| Junction | Ceramic | |
| Connector | 4 mm Banana Connector | |
| Electrolyte | Gel (KCl 1M + AgCl) | |
| Max Pressure | 0.1 bar | |
| Range | -5 to 35°C (23 to 95°F) | |
| Body Material | PEI (PolyEther-Imide) | |
| Cable | 1 m (3.3') | |
| Recommended Use | To be used with FC301B only |
