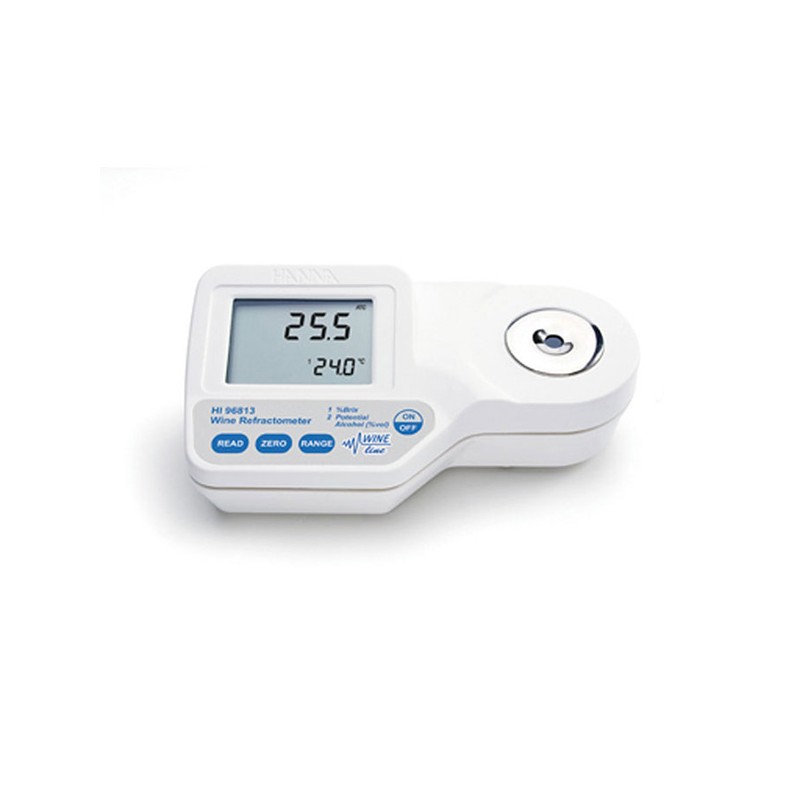

HI-96813 REFRACTOMETER FOR WINE WITH POTENTIAL ALCOHOL & BRIX SCALE
HI-96813
Hanna offers five wine refractometers to meet the various requirements throughout the wine industry.
The HI-96811, HI-96812, HI-96813, HI-96814 and HI-96816 Digital Wine Refractometers are rugged, lightweight and waterproof for measurements in the lab or field.
The HI-96813 is used across the wine industry for measuring the concentrations of sugars in wine.
This digital wine refractometer is rugged, lightweight and water resistant for measurements in the lab or field. Measures the refractive index and displays both % brix and potential alcohol in units of % V/V.
Priced inexpensively does not mean a compromise on accuracy, the Hanna refractometer offers all the benefits of high precision digital technology at the same price as a mechanical model.
The HI-96813 allows the user to tailor the instrument to their specific needs based on their experience, since no fixed conversion factor is universally applicable. The first conversion is based on the %Brix value and an adjustable conversion factor between 0.50 and 0.70 (0.55 is a common value).
Key features
- White water resistant casing
- Easy clean sample well
- Zero using pure water
- Battery operated with auto shut-off
Main benefits
- 1.5 second measurement time
- Direct readout
- Automatic temperature compensation
- No calibration solutions required
- Large clear LCD display
Read More
| Range - Sugar content | 0 to 50 % Brix; 0.0-25.0 % V/V Potential Alcohol | |
| Range - Temperature | 0 to 80°C (32 to 176°F) | |
| Resolution - Sugar Content | ±0.1 % Brix; ±0.1 % V/V Potential Alcohol | |
| Resolution - Temperature | ±0.1°C (0.1°F) | |
| Accuracy (@20°C) - sugar content | ±0.1 °Baumé; ±0.2 V/V Potential Alcohol | |
| Accuracy (@20°C) - Temperature | ±0.3°C (0.5°F) | |
| Temperature Compensation | Automatic between 10 and 40°C (50 to 104°F) | |
| Measurement Time | Approximately 1.5 seconds | |
| Minimum Sample Volume | 100 µL (to cover prism totally) | |
| Light Source | Yellow LED | |
| Sample Cell | Stainless Steel ring and flint glass prism | |
| Auto-off | After 3 minutes of non-use | |
| Enclosure Rating | IP 65 | |
| Battery Type / Battery Life | (1) 9V / Approx 5000 readings | |
| Dimensions | 192 x 102 x 67 mm (7.6 x 4 x 2.6”) | |
| HI-4020-11 | Brix standard 50%, 10mL |
