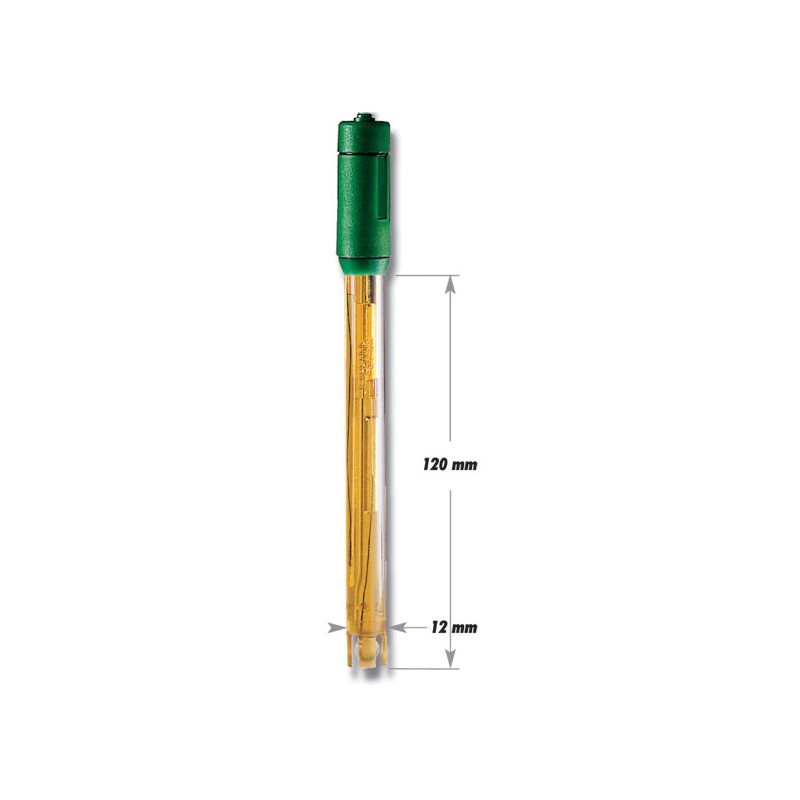

HI-1332P PH ELECTRODE IDEAL FOR CHEMICAL TESTING, BNC CONNECTOR + PIN
HI-1332P
The HI-1332P is a gel filled, plastic body pH electrode with double reference junction that can be used with most hand-held pH/mV meters. Ideal for use with meters that have CAL Check.
The HI-1332P is a gel filled, plastic body pH electrode with double reference junction that can be used with most hand-held pH/mV meters.
Ideal for
- Chemicals
- Field applications
- Quality control testing
Supplied fitted with
- BNC + Pin connector
- 1m cable
Tips for the most accurate measurements
Keep electrode hydrated
Ideally, pH electrodes should be kept in a storage solution when not in use. Placing the electrode in a small glass filled with storage solution is suitable. An option for pocket meters is to place a small piece of sponge into the meter’s cap and pour storage solution (HI-70300) into the cap to wet the sponge. Alternatively, purchase HI-740200 specialised electrode caps for storage. Pouring off any excess solution beforehand, the cap can then be placed on the meter.
Clean electrodes before use
Clean the junction of your electrodes once a day or at least once a week to prevent junction clogging and to maintain accuracy. Immerse the electrode in the proper cleaning solution for at least 15 to 20 minutes. Hanna offers a wide range of cleaning solutions for general purpose and specific applications.
Replace electrode once a year
If your electrode takes too long to stabilise a reading, or readings fluctuate wildly, it is most likely time to replace the electrode. The typical life span of any pH electrode is from 6 months to 1.5 years.
Read More
| Reference | Double, Ag/AgCl | |
| Junction | Ceramic, single / 15-20μL/h | |
| Connector | HI-1332B – BNC; HI-1332D DIN; HI-1332P BNC + Pin* (*For pH meters with CAL check™ system) | |
| Electrolyte | KCl 3.5M | |
| Max Pressure | 0.1 bar | |
| Range | 0 to 13 pH; @ 0 to 70°C | |
| Tip Shape | spheric (dia: 7.5mm) | |
| Temperature Sensor | No | |
| Amplifier | No | |
| Body Material | PEI | |
| Cable | coaxial; 1 m (3.3') | |
| Recommended Use | Chemicals, field applications, quality control |
