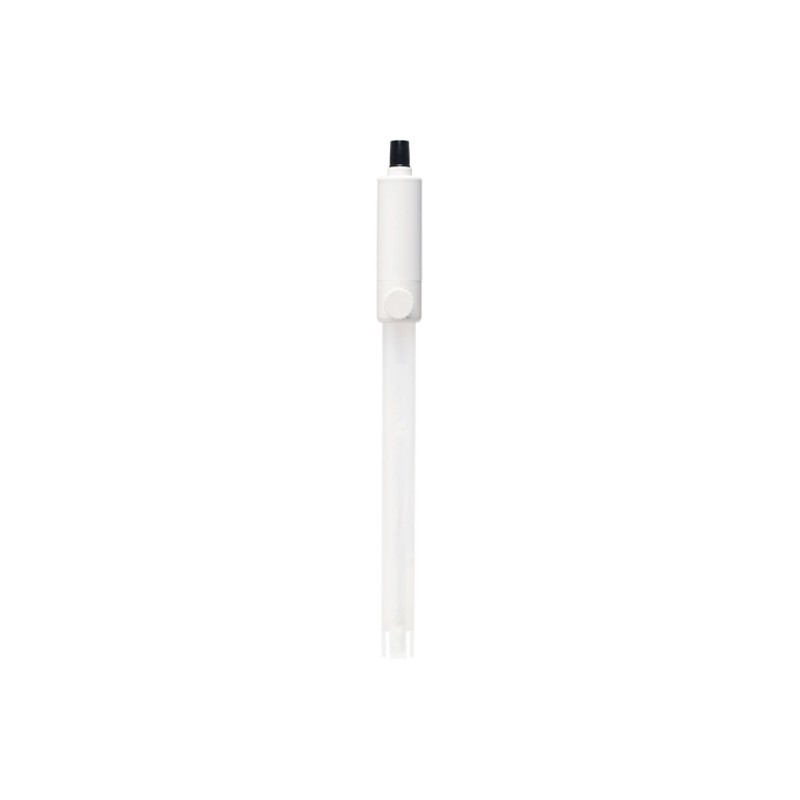

FC101D PH ELECTRODE FOR MILK ANALYSIS
FC101D
The FC101D pH electrode with internal temperature sensor is specifically designed for milk analysis and for use with the HI-99162 pH meter.
6 months warranty
Full Description
Specification
Print Page
Accessories
Reference
Price
Quantity
Full Description
Specification
Key Features
- PVDF body
- Built-in temperature sensor
- Spherical glass tip
PVDF body
- The FC101D is composed of food grade PVDF plastic. This material is highly durable and chemically resistant.
Refillable electrolyte
- The silver free electrolyte ensures no precipitate can clog the junction. An easy to use fill cap allows for quick refilling of electrolyte solution to maintain adequate head pressure.
Single ceramic junction
- A porous ceramic frit allows the silver-free electrolyte to flow slowly into solution, providing accurate readings for aqueous samples.
Built-in temperature sensor
- A thermistor temperature sensor is in the tip of the indicating pH bulb. A temperature sensor should be as close as possible to the indicating pH electrode in order to compensate for variations in temperature.
General purpose glass
- The FC101D uses general purpose (GP) glass. The formation allows for fast response over a wide range of temperatures. The FC101D is suitable to use with samples that measure from 0 to 80°C.
Spherical tip shape
- The shape of the sensing membrane provides a large surface area for contact with milk samples. The highly durable construction provides accurate measurements on the dairy farm as well as the production facility.
Read More
| Description | pre-amplified pH/temperature probe | |
| Reference | double, Ag/AgCl | |
| Junction | ceramic, single | |
| Electrolyte | KCI 3.5M | |
| Max Pressure | 0.1 bar | |
| Range | pH: 0 to 13 | |
| Recommended Operating Temperature | 0 to 80°C - GP | |
| Tip/Shape | spheric (dia: 7.5mm) | |
| Temperature Sensor | yes | |
| Amplifier | yes | |
| Body Material | PVDF | |
| Cable | coaxial; 1m | |
| Connection | DIN |
