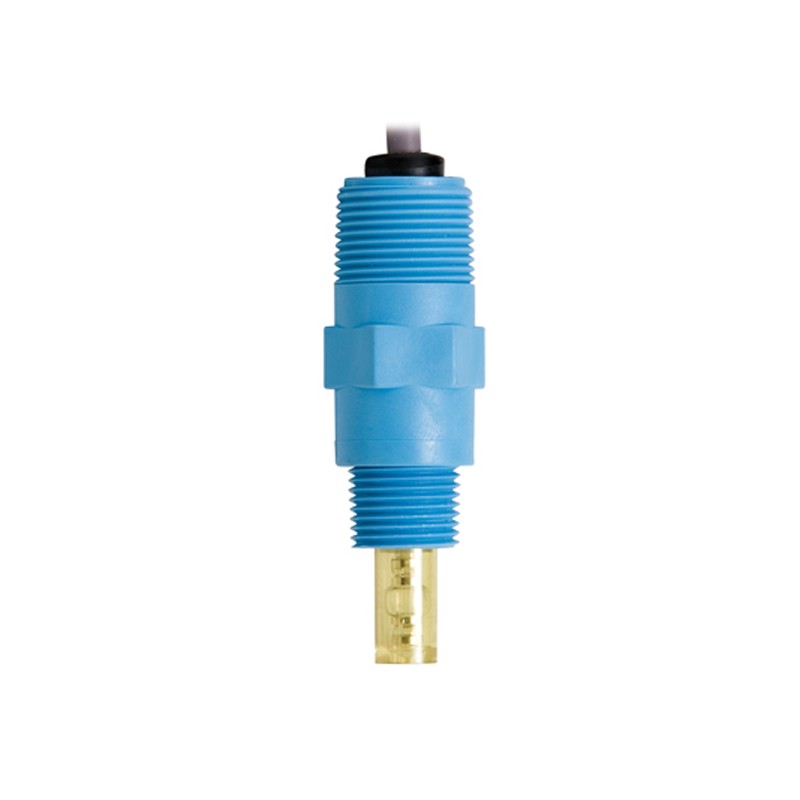

HI-3011 FLOW-THRU CONDUCTIVITY PROBE
HI-3011
The four-ring flow-thru probe measures conductivity in industrial applications with a platinum sensor. With it's durable design, you can count on this electrode to stand up to your process environment.
Flow-thru conductivity probe
- Four-ring probes measure conductivity with platinum sensors
- Houses an NTC sensor for Automatic Temperature Compensation
- Built for everyday, demanding use in industrial applications
The four-ring probes measure conductivity with Platinum sensors. They come with standard ½ inch external thread on the front for flow-thru mounting and ¾ inch threads on the back for submersion of pipe mounting.
The protective cover is made of PEI and can be removed for quick maintenance. The probes can withstand temperatures up to 80°C (176°F) and 6 bars (87 psi) of pressure.
Key features
- Flow-thru conductivity probe - Designed for continuous flow-thru monitoring in industrial applications.
- No temperature sensor - Cannot provide compensated measurements.
- Four-ring method - Provides an exceptionally stable measurement over a wider range. These probes do not suffer polarisation, nor do they need frequent calibration or cell changes.
- No connector - Standard ½” external thread on the front for flow-thru mounting and ¾” threads on the back for submersion or pipe mounting.
- PVDF body - PVDF offers characterised by high thermal stability and excellent chemical resistance.
- PEI protective cover - Can be removed for quick maintenance.
