HI-3618D LABORATORY SPECIAL ORP ELECTRODE
HI-3618D

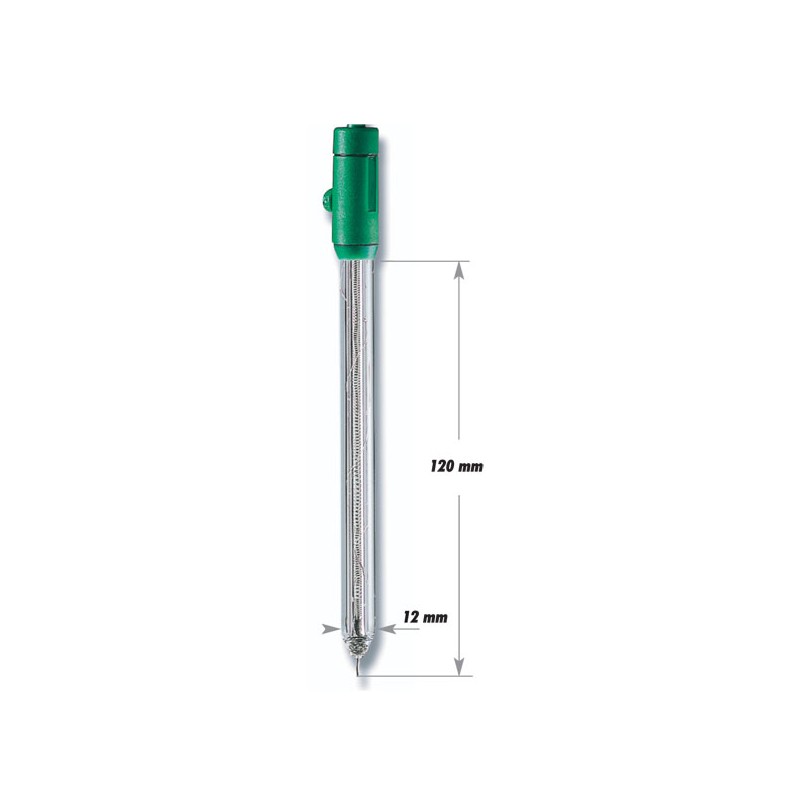

Laboratory ORP electrode with ceramic junction, platinum pin, 7-pin DIN connector, 1 m (3.3') cable, for laboratory applications.
ORP
6 months warranty
Full Description
Specification
Print Page
Full Description
Specification
The HI-3618D is an ORP combination electrode for general laboratory use and has a DIN connector.
Din Connection
| Reference | Single, Ag/AgCl | |
| Junction/Flow Rate | ceramic, single / 15-20 µL/h | |
| Electrolyte | KCl 3.5M + AgCl | |
| Max Pressure | 0.1 bar | |
| Range | ORP: ±2000 mV; -5 to 70°C | |
| Tip Shape | Platinum Pin | |
| Temperature Sensor | Yes | |
| Amplifier | Yes | |
| Body Material | Glass | |
| Cable | 5-pole; 1 m (3.3') | |
| Connection | DIN |
