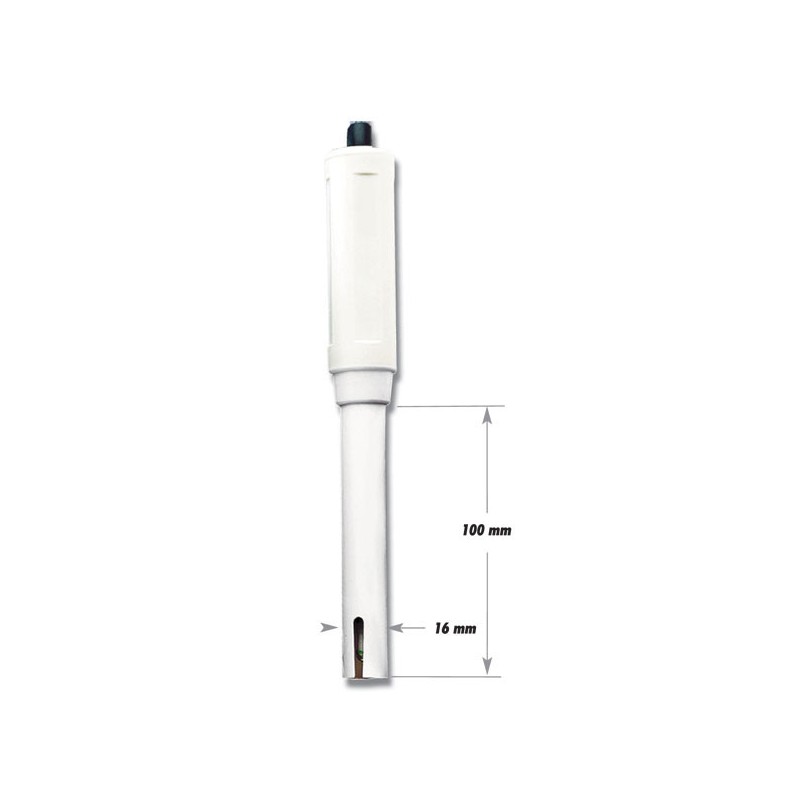

HI-1285-6 PROBE FOR HI-9813-6
HI-1285-6
Measure pH, conductivity (EC), and TDS (ppm) with the HI-1285-6 multiparameter probe. Perfect for measurements in greenhouses, water treatment, and boilers and cooling towers with a polypropylene body, built in temperature sensor, and pre-amplified pH electrode.
Pre-amplified pH and EC Probe with CAL CHECK™
The HI-1285-6 is designed for use with HI-9813-6 Portable pH/EC/TDS/Temperature Meter with CAL Check™.
- 3 in 1 probe with pH, conductivity (EC), TDS (ppm), & temperature sensors
- Pre-amplified for more accurate readings
- Great for hydroponics, aquariums, pools, & ponds
Ideal for
- Greenhouses
- Hydroponics
- Environmental monitoring
- Water treatment
- Boilers and cooling towers
Hanna Instruments offers a wide variety of electrodes that are designed for many different applications. The sensing material, body material, and connection type used are just some of the design considerations.
Pre-Amplified Multiparameter pH Probe
The pH electrode circuit has a built-in amplifier that serves to reduce the effects of electrical noise on the high impedance pH measurement. Electrical noise can come from motors and pumps that are common in greenhouses. The single reference junction design of the pH electrode has a cloth junction that allows ion movement between the inner gel electrolyte and the sample being measured. The advantage of the cloth junction is that it can be extracted from the probe, exposing a fresh surface when readings become drifty or erratic. These features make this probe ideal for use in fertiliser solutions.
Amperometric EC/TDS Sensor
EC/TDS readings are performed by a two-pin amperometric sensor. An alternating voltage is applied to the sensor and the amount of current that passes between the two stainless steel pins determines the amount of dissolved ionic solids present.
Built-In Temperature Sensor
pH and EC/TDS readings must be temperature compensated in order to obtain accurate results. The built-in temperature sensor of the HI-1285-6 provides a speedy temperature reading which is then used to adjust the pH and EC/TDS results accordingly.
Polypropylene Body
The polypropylene body of the HI-1285-6 multiparameter pH probe houses all three sensors within a sturdy, single body design. This body material is suitable for a wide range of applications and excels in measurements with portable meters due to its durability. The fins around the spherical glass pH bulb minimises breakage due to accidental bumping or dropping of the electrode. The polypropylene plastic is a high-quality plastic that is chemically resistant to many aggressive chemicals.
DIN Connector with CAL Check
The HI-1285-6 uses a DIN connector. This type of connector is generally proprietary to the meters they are supplied with and may not be interchangeable. The connection of the HI-1285-6 enables the CAL Check function on the HI-9813-6 portable multiparameter meter.
Cal CheckTM - provides peace of mind every time your thermometer is switched on by automatically checking the thermometer circuit is accurate at 0°C and showing the result on screen at start up. Ensures your thermometer is working correctly and is in calibration.
Read More
Reference | Single, Ag/AgCl | |
Junction | Cloth | |
Connector | Multi-pin with temperature sensor & Cal-Check | |
Electrolyte | Gel | |
Max Pressure | 0.1 bar | |
Range | 0 to 13 pH; EC; 0 to 60°C (32 to 140°F) | |
Tip Shape | Spheric (dia: 8 mm) | |
Temperature Sensor | Yes | |
Amplifier | Yes | |
Body Material | Polypropylene | |
Cable | 7-pole; 2 m (6.6') | |
Recommended Use | Greenhouses, hydroponics, environmental monitoring, water treatment, boilers, cooling towers |
