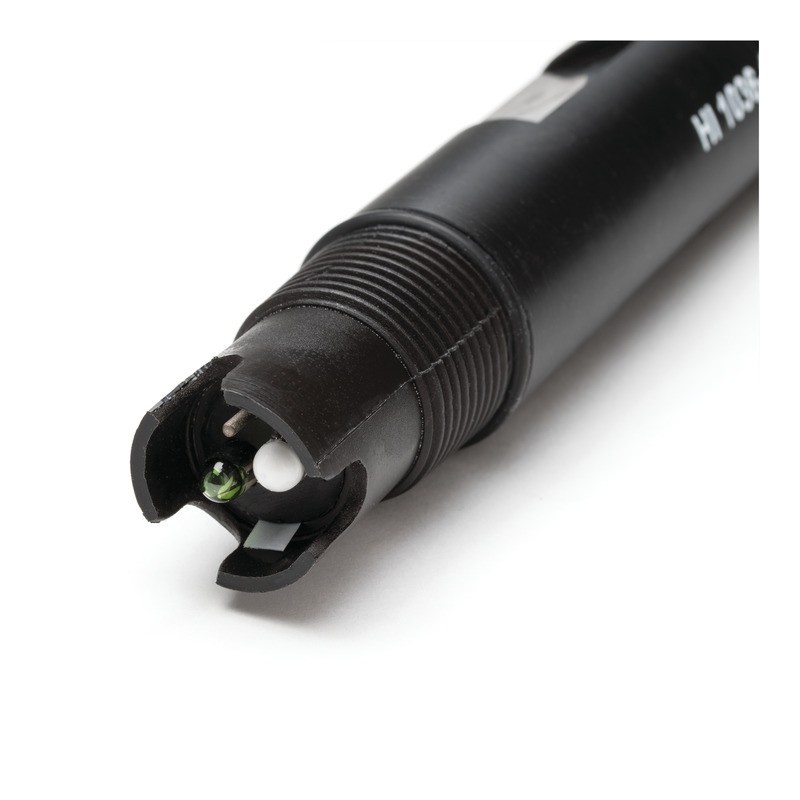

HI-1036-1802 INDUSTRIAL DIGITAL PH, ORP, TEMPERATURE AND MATCHING PIN COMBINED PROBE, 2 M CABLE
HI-1036-1802
Digital pH, ORP, Temperature with Matching Pin combined probe specifically designed for industrial use. Supplied with a 2m cable. Particularly suitable for Pool and Spa controller use.
HI-1036-1802 Industrial pH/ORP/Temperature/Matching Pin combined probe, 2 m cable
This probe contains a matching pin that provides a ground connection to prevent ground loop effects that can cause inaccurate measurements or damage.
Unique pH electrode
The glass of the pH electrode achieves a stable rapid equilibrium, even in water with low conductivity. The pH sensor is designed to produce a zero mV value near pH 4 (not pH 7 like typical pH sensors), stopping process control when the sensor is broken for greater consistency.
Innovative ORP electrode
The ORP electrode features a large, smooth-surfaced platinum band surrounding the temperature probe. Both the ORP and pH sensors, and the reference electrode, use a differential measurement technique that is known to be robust and provide accurate measurements under adverse conditions.
Key features
- Measure pH, ORP and temperature with a single probe
- Easy to install, calibrate and replace
- Resistant to interference from stray current and cables
- Calibration history displayed on-screen
- Available in a range of cable lengths
- Optional measuring cell for digital electrodes
- Long-lasting solution for multiparameter testing
Read More
| pH Range | 0.00-12.00pH | |
| ORP Range | ±2000 mV | |
| Temperature Range | 0-70°C | |
| Reference | Ag/AgCl (3.6M KCl) | |
| Junction | Cloth | |
| Housing | PVDF | |
| Screw Thread | 3/4” NPT | |
| Connector | DIN | |
| Maximum Pressure | 3 bar (43.5 psi) at 25°C |
