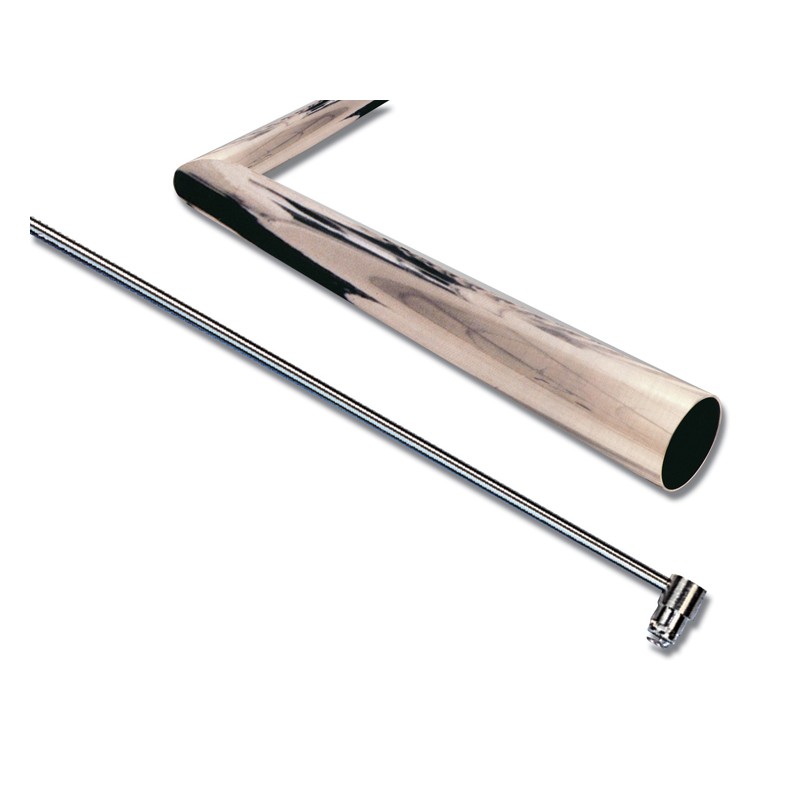

HI-766B1 90°C ANGLE SURFACE K-TYPE THERMOCOUPLE PROBE
HI-766B1
The 90° Angle Surface K-Type Thermocouple Probe with Handle – HI-766B1 is designed to measure the temperature of hard to reach surfaces. The response time of a measurement is affected by the position of the sensor relative to the surface being measured.
The HI-766B1 is a 90°C angle K-type thermocouple probe suitable for taking temperature measurements of hard to reach surfaces.
This probe has a 300mm stem length and is suitable for use with any K-Type Thermocouple thermometer.
The HI-766B1 surface construction offers a speedy 8-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 450°C (840°F).
K-type Connection – Industry standard K-type Thermocouple connector. Can be used with any HANNA K-type thermocouple thermometer.
Read More
| Application | Hard to reach surfaces | |
| Max Temperature | 450°C (840°F) | |
| Sensor | Spring loaded, K-Type Thermocouple | |
| Response Time | 8 seconds | |
| Probe Dimensions | L 300 mm x dia 30 mm | |
| Probe Material | Stainless steel | |
| Cable Length | 1m | |
| For use with | HI-935005, HI-935002, HI-93531, HI-93531N, HI-93531R, HI-93532R, HI-93530, HI-93530N, HI-9063, HI-93551, HI-93551N, HI-93542, HI-93552R |
