HI-7638/20 4-RING EC PROBE WITH PT RINGS, TEMPERATURE NTC SENSOR FOR ATC
HI-7638/20
This four-ring in-line probe measures conductivity in industrial applications with a platinum ring and NTC sensor for Automatic Temperature Compensation. With its durable design, you can count on this electrode to stand up to your process environment.
EC
20m cable
Full Description
Specification
Print Page
Full Description
Specification

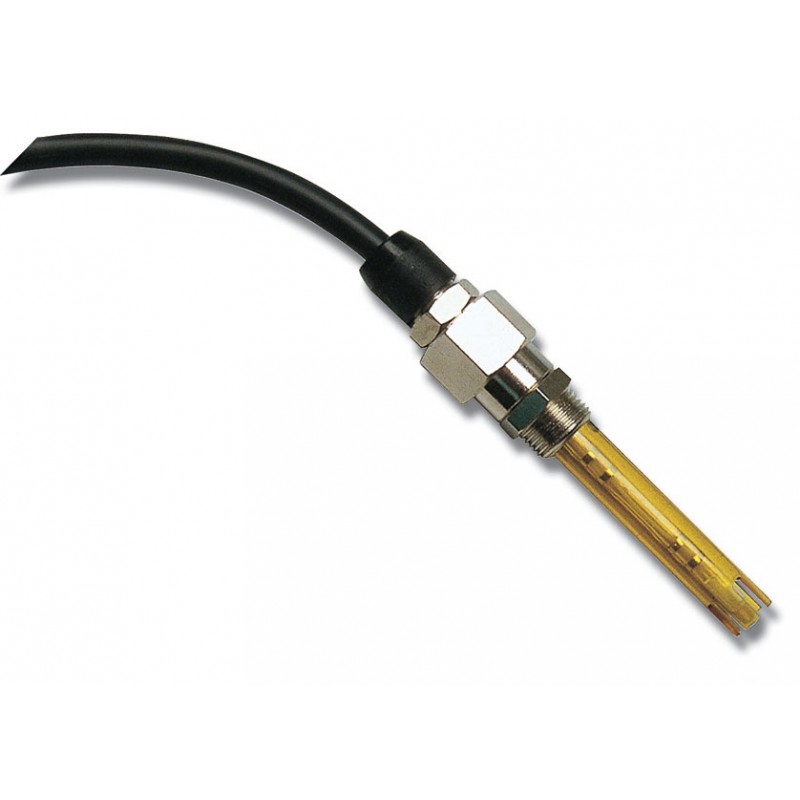

4-ring EC probe with Pt rings, temperature NTC sensor for ATC, 20 m cable
- Four-ring probes measure conductivity with platinum sensors.
- Built-in temperature sensor for Automatic Temperature Compensation.
- Built for everyday, demanding use in industrial applications.
Key features
- In-line conductivity probe - Suitable for direct immersion in pipes.
- Four-ring method - Provides an exceptionally stable measurement over a wider range. These probes do not suffer polarisation, nor do they need frequent calibration or cell changes.
- NTC sensor - Provide accurate and effective temperature compensation.
- Colour coded wires - Variety of cable lengths incorporating colour coded wires for easy connection to transmitters.
- Platinum sensor - Provides the best response over a wide range of applications.
- PEI body - PEI bodied electrodes are rugged and suitable for non-critical applications that require a very good combination of chemical, mechanical, and thermal resistance.
Read More
| Body Material | PEI, glass | |
| Glass type | GP - 0 to 120°C (32 to 248°F) | |
| Matching Pin | No | |
| EC/TDS Temperature Compensation Range | automatic, 0 to 50°C | |
| Temperature Sensor Type | NTC Sensor | |
| Max. Pressure | 5 bar (72.5 psi) | |
| Connector Type | Colour coded wires | |
| Amplifier | No |
