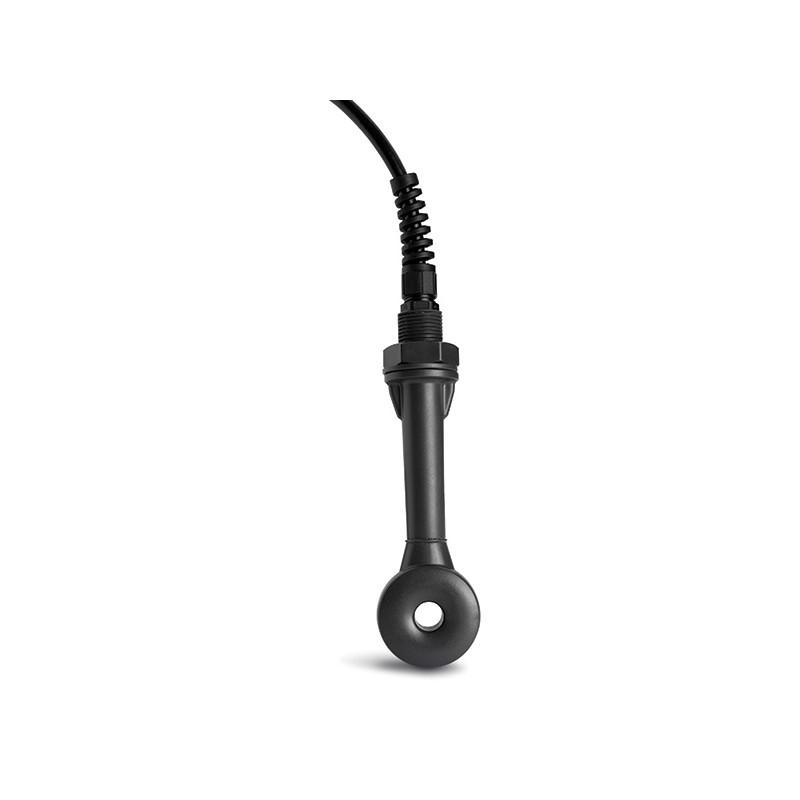

HI-7650-1115 INDUCTIVE CONDUCTIVITY PROBE, ABS BODY, PT100 TEMPERATURE SENSOR, 15M CABLE
HI-7650-1115
This inductive conductivity probe is designed to measure conductivity in industrial applications. With a durable PVC body and optional Pt100 temperature sensor, you can count on this electrode to stand up to your process environment. This probe comes with a 15m cable.
EC
Full Description
Specification
Print Page
Full Description
Specification
- Measurement is based on inductive coupling of two toroidal transformers by the liquid
- Models with built-in temperature sensor for Automatic Temperature Compensation
- Built for everyday, demanding use in industrial applications
The advantages of using the Inductive Conductivity probe
- Inductive Conductivity Probe - Allows conductivity measurements without any electrical contact between electrodes and process fluid.
- Models with Built-in Pt100 Temperature Sensor - No Electrodes - Common problems such as polarisation and contamination are eliminated and will not affect the performance of the electrode-less sensor.
- Variety of Cable Lengths - Probe models vary in cable length to fit any of your process needs.
- PVC Body - This rugged material is ideal for indoor as well as outdoor measurements.
- IP67 Rating - Fully protected from dust (6) and can also withstand being submerged in 1m (about 3.3 feet) of static water for up to 30 mins (7).
Also available with 5m and 10m cable.
Read More
| Description | Inductive Conductivity Probe | |
| Conductivity Measuring Accuracy | ±2% f.s. | |
| Conductivity Measuring Range | 0 to 2000 mS/cm | |
| Temperature Sensor Type | None, Pt100 (depending on model) | |
| Cell Constant | approx. 2.4 cm-1 | |
| Temperature Response | 90% of the final value, approximately 10 minutes | |
| Overall Length | 40 x 190 x 55 mm (1.57 x 7.48 x 2.16”) ; head: 32 x OD 55 mm (1.25” x OD 2.16”n) | |
| Required Pipe Diameter | >80 mm (consider installation factor for pipe with diameter < 125 mm) |
