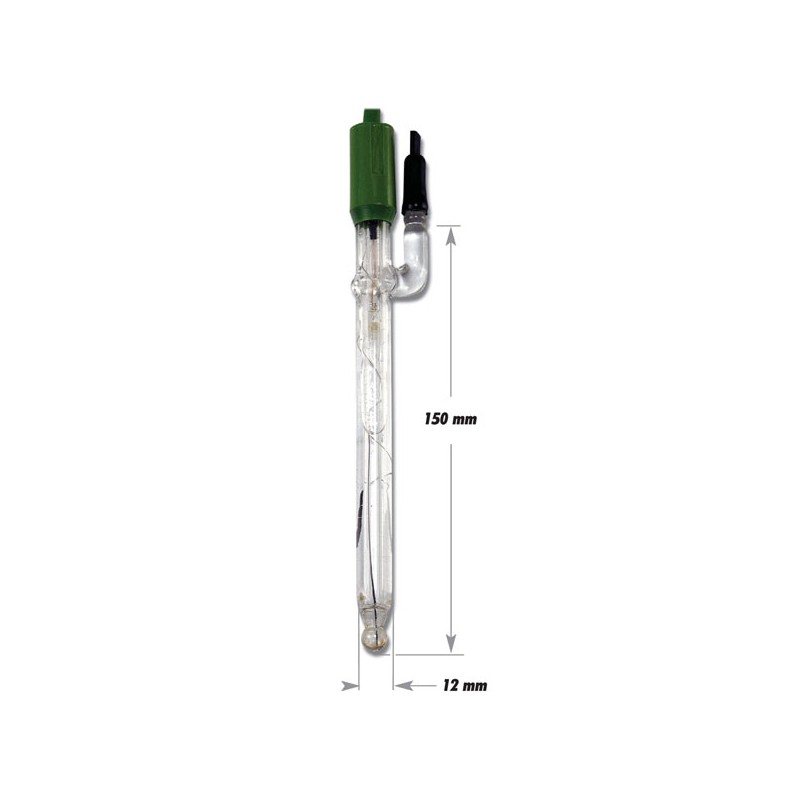

HI-1135B GLASS BODIED PH ELECTRODE WITH SIDE ARM FOR CONTINUOUS MONITORING
HI-1135B
The HI-1135B is a glass bodied refillable double junction, combination, pH electrode with a side arm construction for continuous replenishment of the electrolyte. Suitable for continuous monitoring situations and when the side arm is connected to an electrolyte supply, able to withstand 3 Bar back pressure.
The HI-1135B is a refillable, combination pH electrode side arm construction & fast flow rate, for use on continuous monitoring with remote filing.
This electrode has a 1m cable and BNC connector.
The HI-1135B is a glass body, refillable, double junction pH electrode with a BNC connector. This electrode has a double ceramic junction in the outer junction and the pH sensing portion is made with high temperature glass.
The HI-1135B also features a glass side arm construction that allows for a faster flow rate. This design consideration is ideal for applications in which continuous pH monitoring is essential.
Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.
The HI-1135B uses high temperature glass, spherical bulb, glass body, double ceramic reference, double junction and is refillable through the side arm construction with 3.5M KCl.
Read More
| Reference | Double, Ag/AgCl | |
| Junction | Ceramic, double | |
| Connector | BNC | |
| Electrolyte | KCl 3.5M | |
| Max Pressure | 3 bar with back pressure | |
| Range | 0 to 14 pH; 0 to 100°C | |
| Tip Shape | Spheric (dia: 9.5 mm) | |
| Temperature Sensor | No | |
| Amplifier | No | |
| Body Material | Glass | |
| Cable | Coaxial; 1 m (3.3') | |
| Recommended Use | Continuous monitoring with remote filling |
