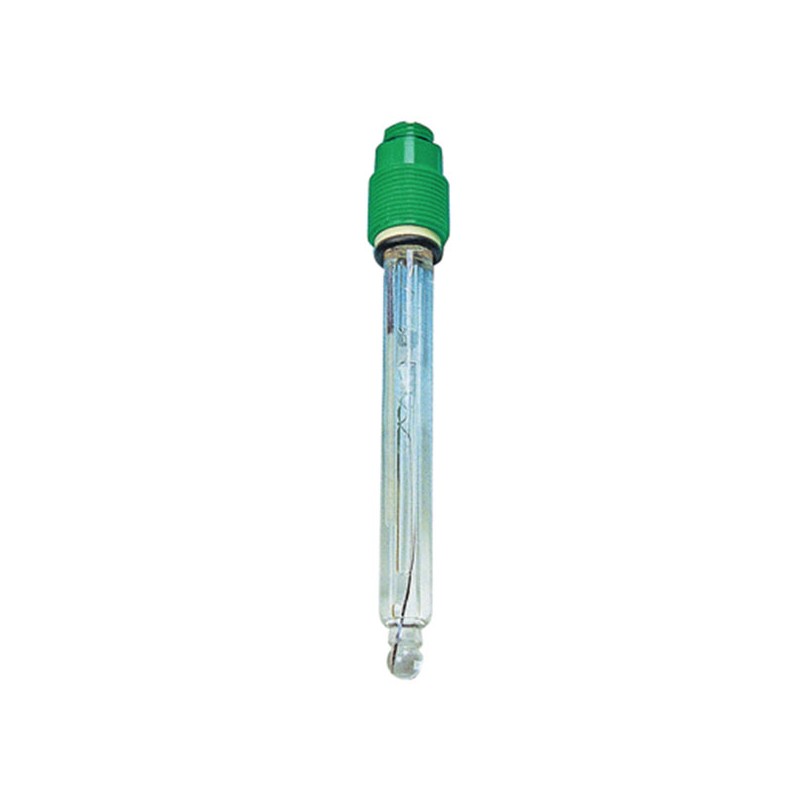

HI-1191T T-TYPE GLASS BODY PH ELECTRODE
HI-1191T
The HI-1191T is a glass bodied double junction pH electrode with T-type connector for use with process instrumentation.
This electrode can measure in temperatures of -15 to 80°C (5 to 176ºF).
Electrodes featuring a T-connector have been designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation; furthermore, the user can quickly and easily perform all servicing and maintenance procedures. The screw cap allows for maximum versatility making it possible to connect a cable of different lengths. Easily detachable cables make electrode replacement simple.
Many models are available to choose from, all of which feature a double junction of gel polymer filling to ensure long electrode life and reliability in harsh environments. In addition, users can select from ground-glass or cloth junction technology to meet the needs of their specific application.
- Screw cap connector and PG 13.5 thread
- Easy Operation
- Double-junction technology
- Pressure up to 3 bar (43.5 psi)
Electrodes featuring a PEI body are ideal for use in moderately aggressive liquids, such as in wastewater, while electrodes featuring glass bodies are recommended with more aggressive chemicals, such as in galvanic applications.
These sensors are suitable to be operated with moderate pressure up to 3 bar (43.5 psi) and operating temperature limits of -5 up to 95°C.
Read More
| HI-1190T | ||
| Junction | Double, PTFE | |
| Electrolyte | Polymer | |
| Temperature | -15 to 80°C - LT | |
| Max Pressure | 6 bar (87 psi) | |
| Connector | T-type | |
| HI-1191T | ||
| Junction | Double, PTFE | |
| Electrolyte | Polymer | |
| Temperature | -15 to 80°C - LT | |
| Max Pressure | 8 bar (116psi) | |
| Connector | T-type | |
| HI-1192T | ||
| Junction | Double, PTFE | |
| Electrolyte | Polymer | |
| Temperature | -15 to 80°C - LT | |
| Max Pressure | 8 bar (116 psi) | |
| Connector | T-type |
