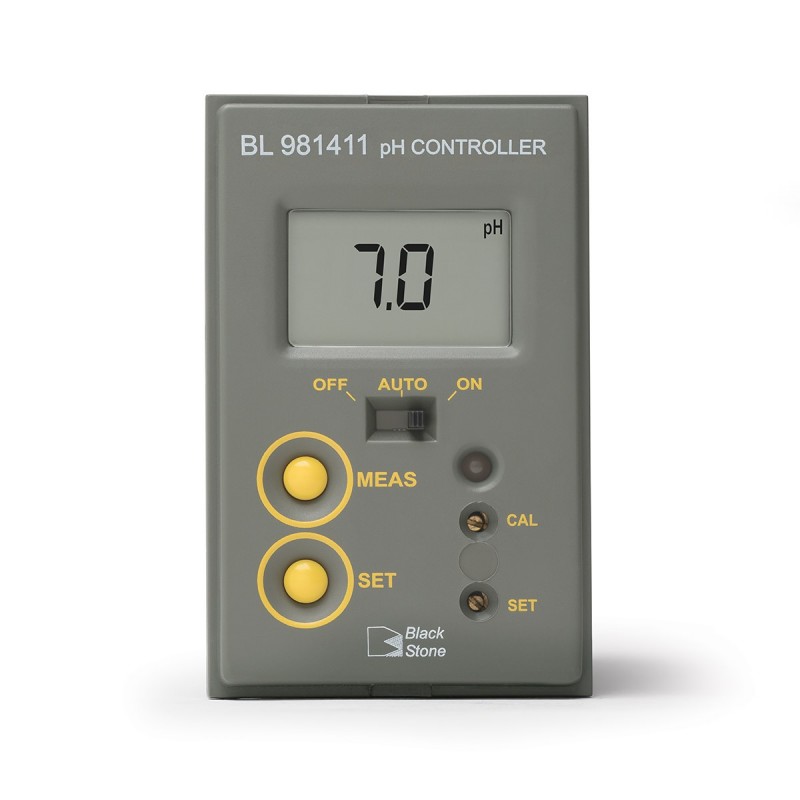

BL-981411-1 PH MINI CONTROLLER

BL 981411 pH controller has been designed for easy, affordable installation in tight spaces, ideal for simple and effective process control. The unit is provided with differential pH input and can be used with any pH electrode with standard BNC connector. Measurements are clearly displayed on the large LCD, while the status LED indicates operating mode.

BL 981411 is also provided with a dosing relay. Selecting acid dosing, will cause the relay to activate when the measurement is higher than the set point. If the basic dosing is selected, the relay is activated when the reading falls below the set point.

Set point adjustment (from 0 to 14 pH) and calibration procedures are easily performed with trimmers on the front panel. You can also choose from automatic or manual dosing modes with a switch on the front panel. Manual control is particularly useful during maintenance operations, because it permits you to enable or disable the dosing relay according to your need. An overtime control system advises you when the relay is active too long, to help prevent overdosing.

Two models are available, with power supply input at 115/230 Vac or 12 Vdc.

Order Information:

The BL 981411 is supplied with mounting brackets, transparent cover and instructions.

Adjustable Dosing Relay

The BL981411 features a dosing relay which may be configured to dose above or below a user programmable pH setpoint.

Selectable Overdose Protection

The mini controller may be programmed to deactivate a valve, pump, or connected device if its activation continues over a selected time; adjustable from 5 to 30 minutes.

Selectable Control Override

With the flick of a switch, normal “Auto” operation may be overridden turning your connected device “Off” from operation or always “On.”

Fuse Protected Dosing Contacts

The mini controller is protected for up to a 2A load from a connected pump or device.

Easy Peripheral Connection

Quick-connect terminal blocks provide for easy connection to power, communication, dosing control, or sensors.

Matching Pin Connection

An included matching pin option helps protect the sensor from ground loop effects that may lead to erratic readings or system damage.

Interchangeable Electrode - One controller for all jobs thanks to HANNA’s wide range of interchangeable electrodes. Simply change the electrode for the task ahead.
