HI-1617D INTELLIGENT PH ELECTRODE SPEAR POINT FOR EMULSIONS
HI-1617D
Intelligent pH electrode spear point for emulsions.
The HI-1617D is a pH electrode for fats and creams, soil samples, semi-solid products, low conductivity solutions and emulsions.
This electrode has a 1m cable and DIN connector.
Tips for the most accurate measurements
Keep electrode hydrated
Ideally, pH electrodes should be kept in a storage solution when not in use. Placing the electrode in a small glass filled with storage solution is suitable. An option for pocket meters is to place a small piece of sponge into the meter’s cap and pour storage solution (HI-70300) into the cap to wet the sponge. Alternatively, purchase HI-740200 specialised electrode caps for storage. Pouring off any excess solution beforehand, the cap can then be placed on the meter.
Clean electrodes before use
Clean the junction of your electrodes once a day or at least once a week to prevent junction clogging and to maintain accuracy. Immerse the electrode in the proper cleaning solution for at least 15 to 20 minutes. Hanna offers a wide range of cleaning solutions for general purpose and specific applications.
Replace electrode once a year
If your electrode takes too long to stabilise a reading, or readings fluctuate wildly, it is most likely time to replace the electrode. The typical life span of any pH electrode is from 6 months to 1.5 years.
Läs mer
| pH electrode | HI-1617D | |
| Reference | single, Ag/AgCl | |
| Junction/Flow rate | Ceramic, single / 40-50µL/h | |
| Electrolyte | KCl 3.5M + AgCl | |
| Max pressure | 0.1 bar | |
| Range | pH: 0 to 12 | |
| Recommended operating temp | -5 to 30°C | |

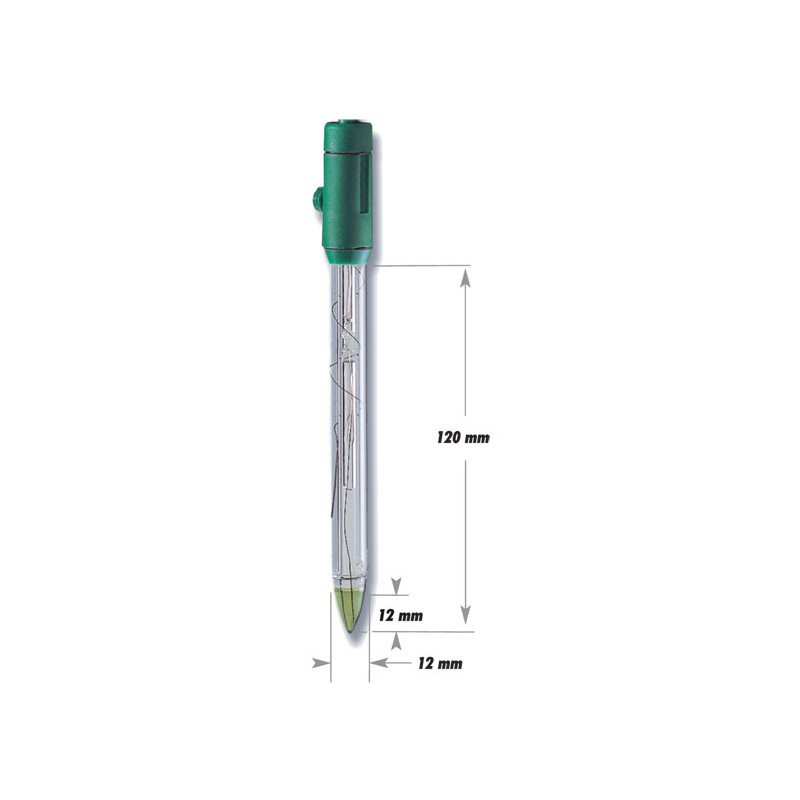

| Tip/Shape | Conic (12 x 12mm) | |
| Temperature Sensor | Yes | |
| Amplifier | Yes | |
| Body material | glass | |
| Cable | 7-pole; 1m | |
| Recommended use | fats and creams, soil samples, semi solid products, low conductivity solutions, emulsions | |
| Connection | 7-pin DIN |
