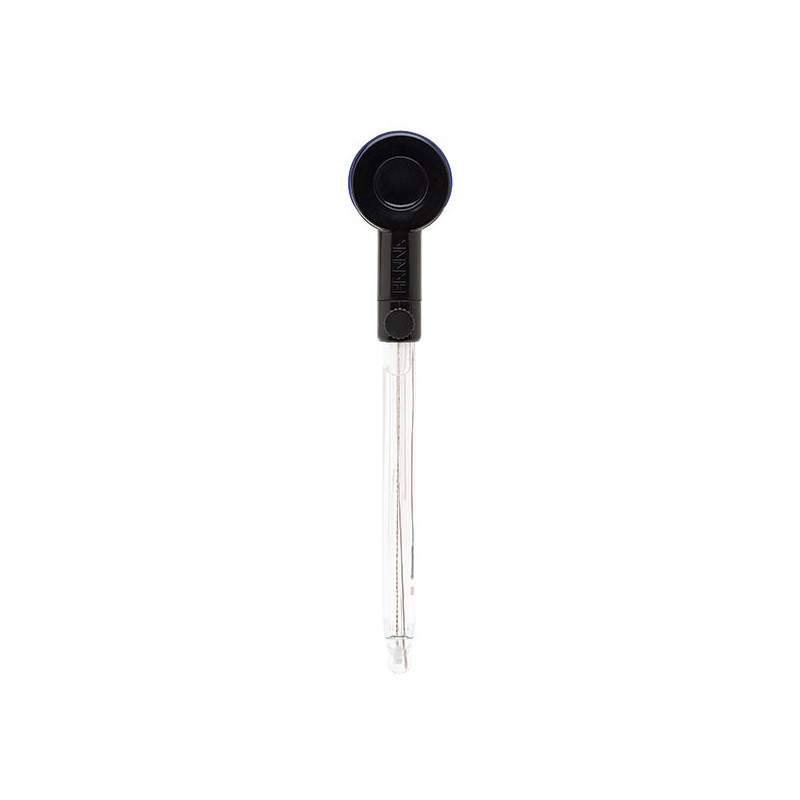

HI-11312 HALO GLASS BODY REFILLABLE PH ELECTRODE WITH BLUETOOTH®
HI-11312
Accurate, flexible & easy to use, HALO® Bluetooth pH electrode connects wirelessly to a mobile phone or tablet or the Hanna Edge-Blu pH meter.
It has a double junction, refillable glass pH electrode, fitted with a built-in temperature sensor for automatic temperature compensation.
Use with the free Hanna Lab App to turn a tablet or mobile phone into a fully functional pH meter with calibration, measurement, datalogging, graphing & data share.

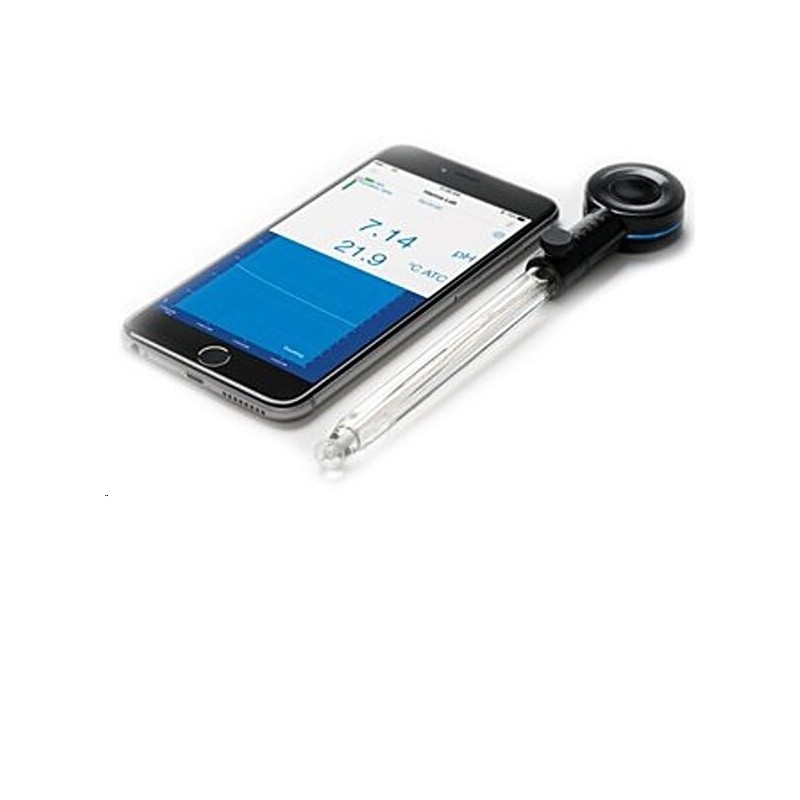

The HI-11312 HALO® is a pH and temperature electrode which incorporates a Bluetooth transmitter to wirelessly connect to a tablet or mobile phone or the Hanna Edge-Blu pH meter.
- No need for a pH meter
- Free to use Hanna Lap App for iPad
- Flexible, accurate and easy to use

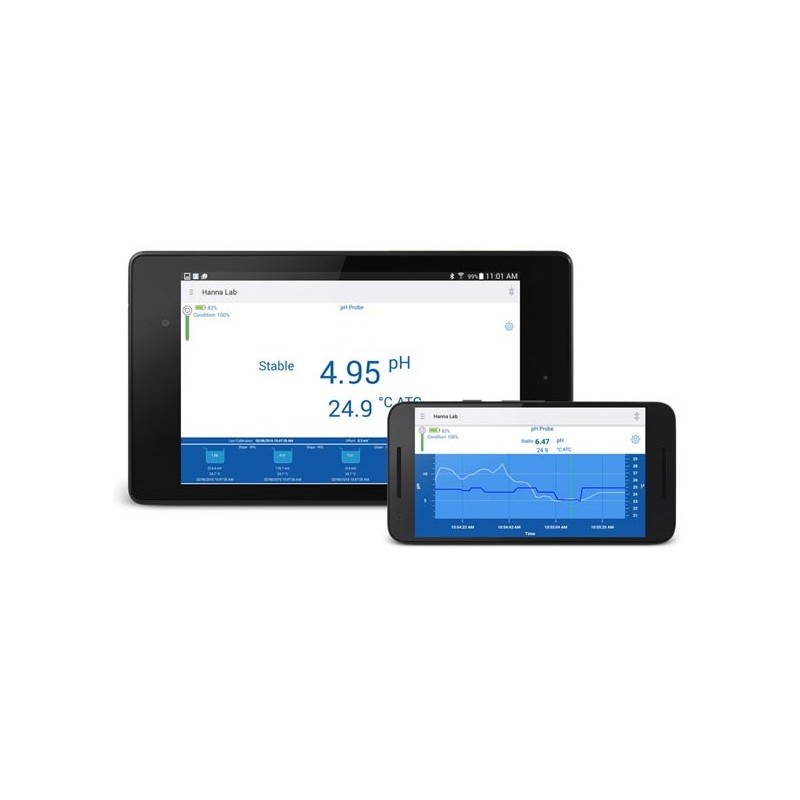

Hanna Lab App
The first app that turns a tablet or mobile phone into a full-featured pH meter!
The Hanna Lab App turns a tablet or mobile phone into a full-featured pH meter when used with the Hanna HALO® pH electrode with Bluetooth® smart technology. Functions include calibration, measurement, data logging, graphing and data sharing. Measurement and logging of pH and temperature at one second intervals start as soon as the probe is connected. Measurements can be displayed alone on the display, with tabulated data or as a graph. The graph can be planned and zoomed with the tablet or mobile phone's pinch-to-zoom technology for enhanced viewing.
Connecting a HALO® probe to the Hanna Lab App is simple. Tap the Bluetooth® icon in the top-right corner to view all available HALO® probes then press the button on your HALO® probe. The blue halo on the probe will start blinking indicating that it is in discovery mode. Select the newly discovered HALO® probe from the list of available probes. If a previously associated probe is detectable when the app is opened, it will connect to that probe automatically.
- Connects to HALO® via Bluetooth® 4.0
- Up to five-point pH calibration with seven standard pH buffers available
- Calibration reminder
- pH and temperature updated every second
- Basic and full GLP
- Fluid, dynamic graphing
- Measurement alarms Alerts you if the measurement threshold is exceeded
- One button sample tagging
- Data-logging with custom annotations
- Share data via email in CSV format
- Help and tutorials
Bluetooth® Connection – Wire free data transmission using Bluetooth 4 low power technology. Compatible with the HANNA Edge Blu® meter, and also allows transmission of pH and temperature data to your mobile phone or tablet in conjunction with the free HANNA Lab App.
All electrodes and probes have 6 months warranty.
Go to Google Playstore or iOS to download the FREE Hanna Lab App
Läs mer
| Reference | double, Ag/AgCl | |
| Junction | ceramic | |
| Electrolyte | 3.5M KCl | |
| Range | 0.00 to 13.00 pH; ±420 mV; -5.0 to 80.0°C | |
| Tip Shape | spheric | |
| Outer Diameter (glass) | 12mm | |
| Overall Length | 195mm | |
| Environment | 0.0 to 50.0°C, electronic module is not waterproof | |
| Solution Temperature | -5.0 to 80.0°C | |
| Temperature Sensor | integrated | |
| Body Material | glass | |
| Connection | Bluetooth® Smart (Bluetooth 4.0), 10m range | |
| Battery Type/Life | CR2032 3V lithium ion/approximately 500 hours | |
| Hanna Lab App Specifications | -2.000 to 16.000 pH; ±800mV; -20.0 to 120.0°C | |
| Hanna Lab App Specifications | Range: -2.000 to 16.000 pH; ±800mV; -20.0 to 120.0°C | |
| Accuracy (@25°C) | ±0.005 pH; ±0.3 mV; ±0.5°C | |
| Calibration Points | up to five-point calibration with seven standard buffers (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 pH) | |
| Calibration Points | up to five-point calibration with seven standard buffers (1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 pH) | |
| Temperature Compensation | automatic from -5.0 to 100.0°C | |
| Compatibility/System Requirements | Hanna Lab App works with iPad 3rd generation or newer (including iPad mini) with Bluetooth® 4.0 technology and iOS 7.1 or newer |
