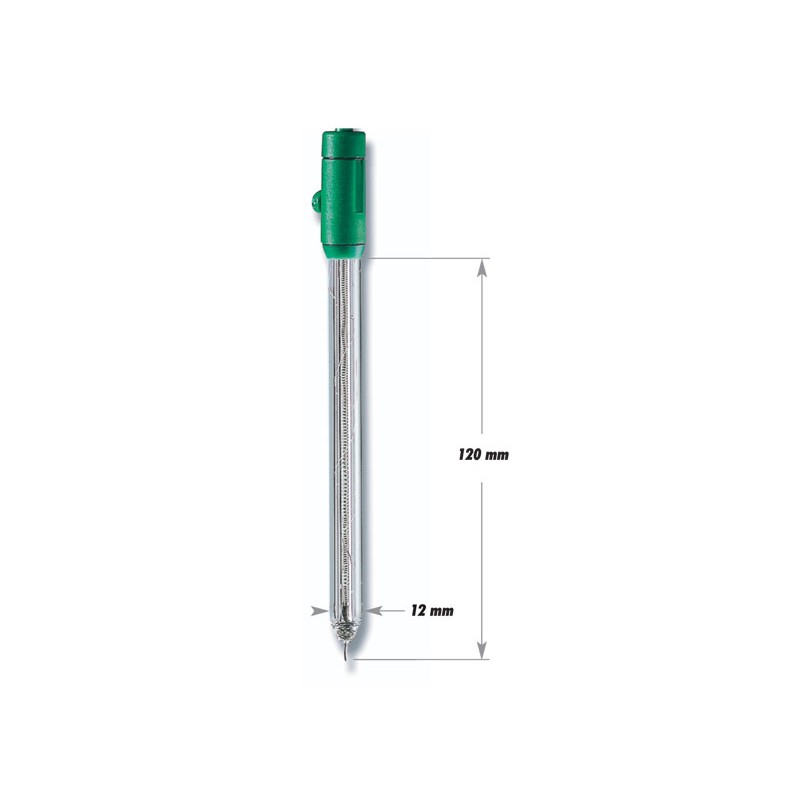

HI-3619D LABORATORY INTELLIGENT ORP ELECTRODE
HI-3619D
Intelligent ORP electrode with ceramic junction, platinum pin, 7-pin DIN connector and 1 m (3.3') cable, for laboratory general use and disinfection.
ORP
6 months warranty
Beskrivning
Specifikation
Skriv ut
Beskrivning
Specifikation
This electrode is recommended for use with HI-98140, HI-98150, HI-98230 and HI-98240 pH meters.
Din Connection
| Reference | Single, Ag/AgCl | |
| Junction/Flow Rate | ceramic, single / 15-20 µL/h | |
| Electrolyte | KCl 3.5M + AgCl | |
| Max Pressure | 0.1 bar | |
| Range | ORP: ±2000 mV; 20 to 40°C (68 to 104°F) | |
| Tip Shape | Platinum Pin | |
| Temperature Sensor | No | |
| Amplifier | Yes | |
| Body Material | Glass | |
| Cable | 7-pole; 1 m (3.3') | |
| Connection | DIN |
