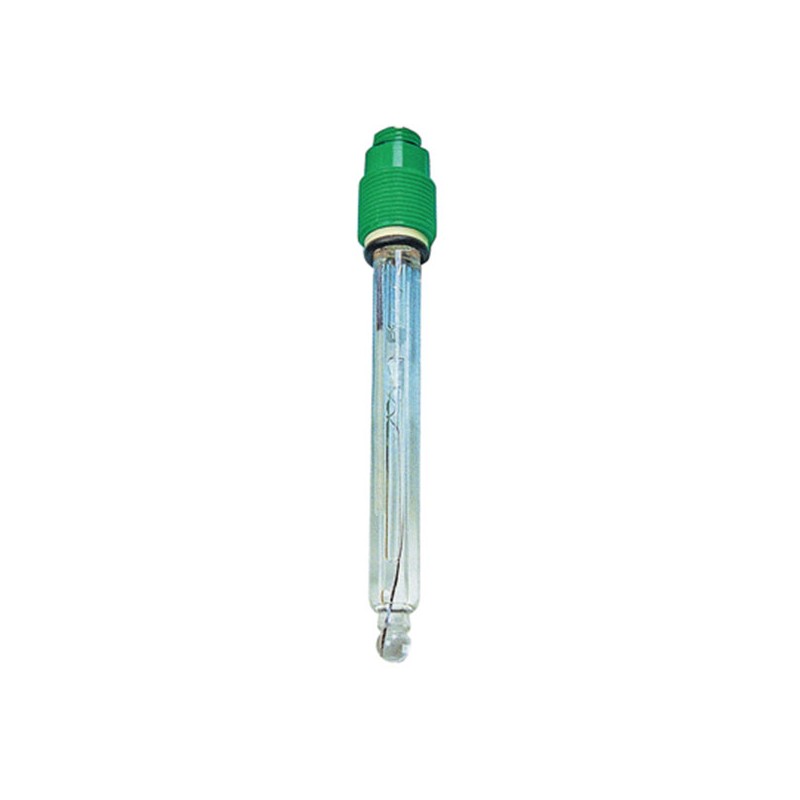

HI-1190T T-TYPE GLASS BODY PH ELECTRODE
HI-1190T
The HI-1190T is a glass bodied double junction pH electrode with T-type connector for use with process instrumentation.
This combination glass-body pH electrode is designed for industrial applications with features such as a PTFE junction, low temperature glass, and T-type connection. With its durable design, you can count on this electrode to stand up to your process environment.
- pH electrode with exclusive PTFE non-clogging membrane.
- Low temperature glass for fast stabilisation and more accurate results at lower temperatures.
- Built for everyday, demanding use in industrial applications.
This electrode can measure in temperatures of -15 to 80°C (5 to 176ºF).
Combination electrode - Single combined electrode that has both sensing and reference components for added convenience.
Low temperature glass formulation - Low temperature glass for fast stabilisation and more accurate results at lower temperatures.
T-type connector - Designed by Hanna to take advantage of both PG 13.5 thread and screw cap. The PG 13.5 thread ensures proper in-line installation while the screw cap allows for maximum versatility making it possible to connect a cable of different lengths.
PTFE junction - The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
Glass body - Glass body electrodes are easier to clean, can withstand high pressure and high temperature applications, and offers high resistance to aggressive chemicals.
Double junction technology with gel polymer filling - Ensure long electrode life and reliability in harsh environments.
Läs mer
| Junction Type/Flow Rate | Double, PTFE | |
| Type of Electrolyte | Polymer | |
| Body Material | Glass | |
| Glass Type | -15 to 80°C | |
| Matching Pin | No | |
| Max. Pressure | 3 bar (43.5 psi) | |
| Overall Length | 140mm | |
| Temperature Sensor | No | |
| Connector Type | T-type | |
| Amplifier | No | |
| Probe Mounting | PG 13.5 Thread |
