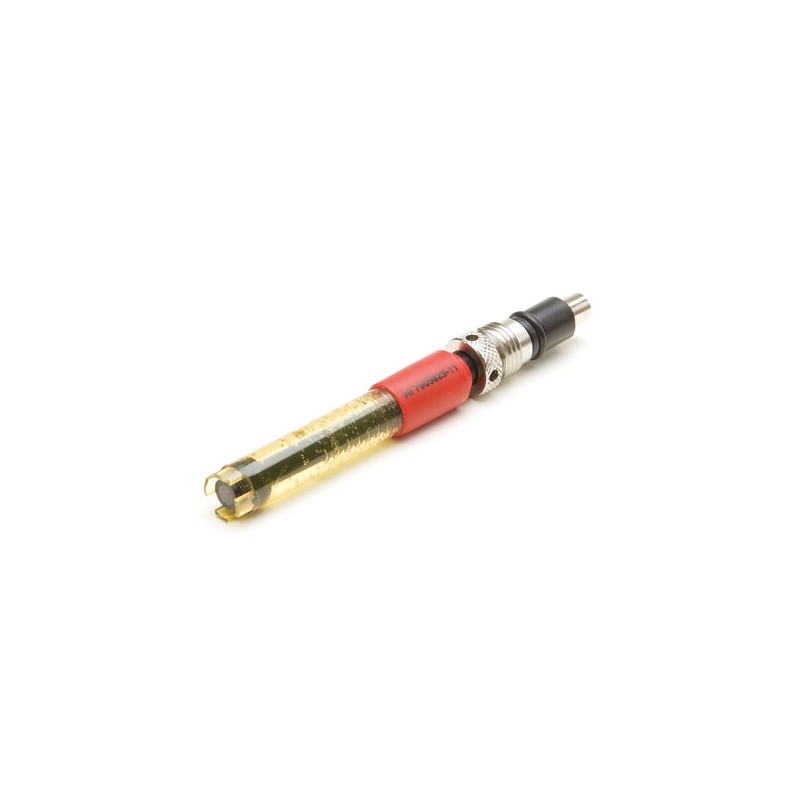

HI-7609829-11 SPARE CHLORIDE ISE SENSOR FOR HI-7609829/HI-7629829 SERIES OF PROBES
HI-7609829-11
The HI-7609829-11 is a combination solid state chloride selective sensor used for the detection of free chloride ions in freshwater samples. Its double junction design contains an Ag/AgCl, gel-filled reference chamber.
Chloride ISE for use with HI 9829
The HI 7609829-11 is a Chloride ISE, with an o-ring. This electrode is to be used with the HI-9829 and HI-98290 multi-parameter meters.
A choice of three ion selective electrodes (ISE) is available for constant reporting of common surface water contaminants. Nitrate, ammonium and chloride ISEs are available. Each ISE is a combination electrode incorporating an extremely constant reference spiral; all potentionmetric probes feature a double junction and solid gel reference design. The HI-9829 displays measurements of ion activity as ppm ammonium-nitrogen, ppm chloride, and ppm nitrate-nitrogen.
IP68 - Dust-tight and protected against the effects of continuous immersion in water beyond 1m.
Läs mer
| Sensor | HI-7609829-11 | |
| Description | Chloride ISE | |
| Measurement Type | ppm | |
| Measurement Range | 0.6 to 200.0 ppm Cl- | |
| Temperature Range | 0 to 40 °C | |
| Tip / Body | Solid State Ag/Cl Pellet / PEI | |
| Electrolyte / Reference | Gel / Double | |
| Colour code | Red | |
| Dimensions | 118 x 15 mm | |
| Depth | 5 metres |
