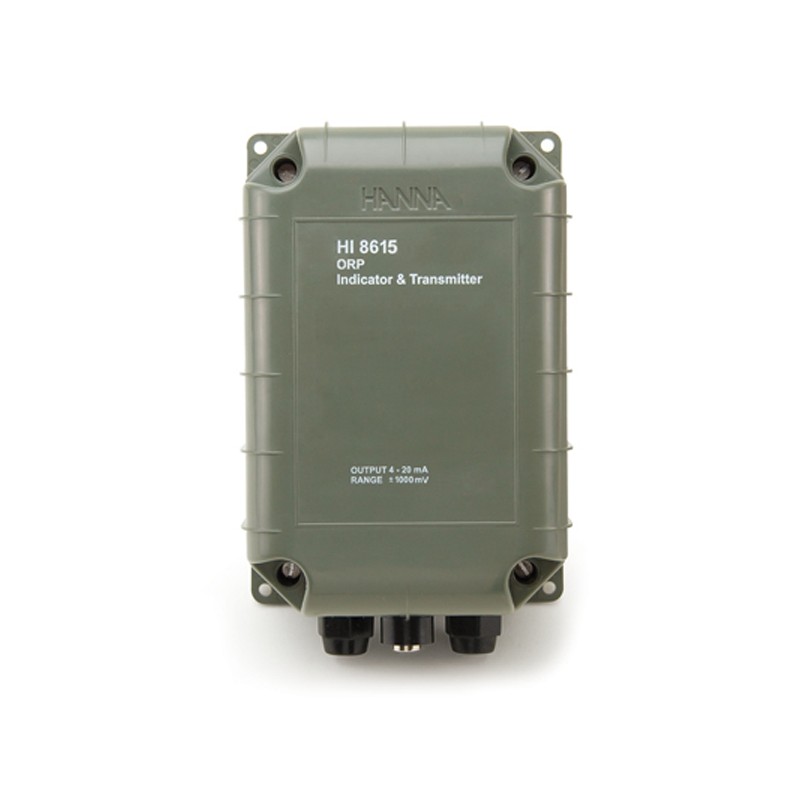

HI-8615N ORP TRANSMITTER
HI-8615N
The HI-8615 transmitters have been designed for transmitting ORP measurements from remote locations. These transmitters feature two controls (one for 4mA and one for 20mA) to compensate for electronic drift and ambient temperature.
ORP Transmitter with 4-20 mA Galvanically Isolated output, HI 8615(L): ±1000 mV / 4-20 mA, HI 8615(L)-01: ±1999 mV / 4-20 mA.
The transmitters have been designed for transmitting ORP measurements from remote locations. These transmitters feature two controls (one for 4mA and one for 20mA) to compensate for electronic drift and ambient temperature.
These transmitters can be connected to Hanna HI-8512, HI-8720 or any recorders, computers or any data monitoring device that accepts 4 to 20 mA input.
Replaceable Electrode – No need to replace the whole meter when the electrode needs replacing. Spare and replacement electrodes are available for this product.
BNC Connection – BNC is one of the most commonly used connector types in pH meters and electrodes. Compatible with any meter or electrode that uses BNC connectors.
Läs mer
| Range | +-1999mV; 4-20mA | |
| Resolution | 1 mV; 0.01 mA | |
| Accuracy (@20C/68F) | +-5mV; +-0.02mA | |
| Calibration | offset: +-100mV; +-0.8mA; slope 90 to 110%; +-0.8mA | |
| Input impedance | 1012 0hm | |
| Recorder Output | 4-20 mA (isolated) | |
| Protection | IP65 | |
| Power supply | 20-36VDC | |
| Load | max 500 0hm | |
| Environment | 0 to 50C (32 to 122F); RH max 95% non-condensing | |
| Dimensions | 165 x 110 x 71mm (6.5 x 4.3 x 2.8 inches) | |
| Weight | 1 Kg (2.2lb) |
