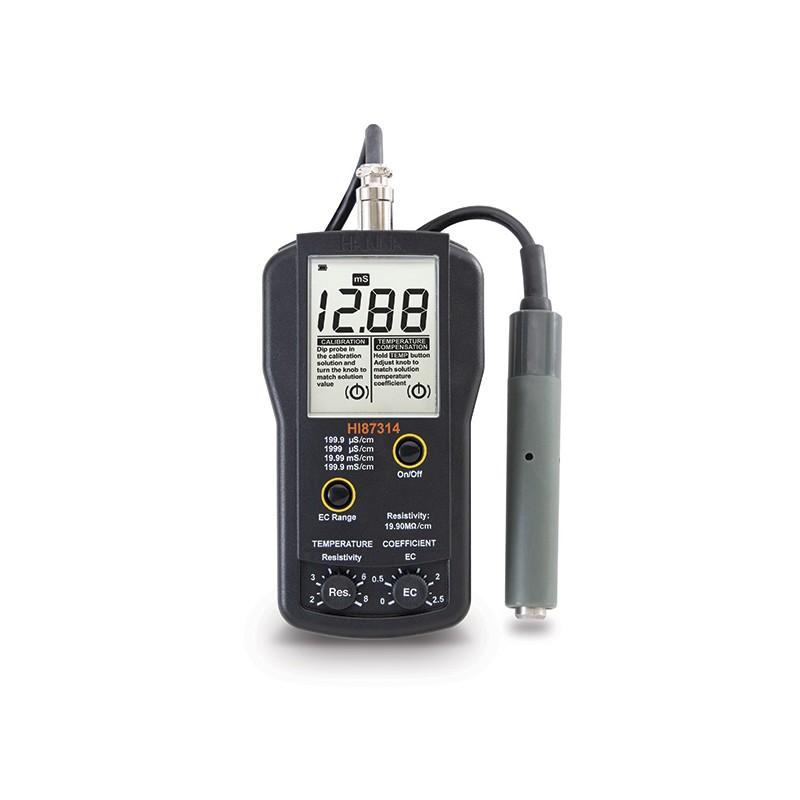

HI-87314 EC AND RESISTIVITY METER
HI-87314
HI 87314 is a combination, portable meter that can read conductivity in 4 different ranges and resistivity.
The HI-87314 is a combination, portable meter that can read conductivity in four different ranges and resistivity.
For conductivity measurements, a one-point calibration is performed via a trimmer located in the battery compartment. The supplied probe does not require recalibration when switching from one range to another.
The four-ring (stainless steel) probe has a built-in temperature sensor that automatically compensates for temperature changes.
For resistivity measurements, the meter is factory calibrated and, if necessary, calibration can be adjusted. The HI-3316D resistivity probe is easy to clean and requires little maintenance. It also features a built-in temperature sensor to automatically compensate for temperature variations. The temperature coefficient is user-selectable from 2 to 7%.
Ideal for
- Water conditioning
- Water softening
- Demineralisation
- Reverse osmosis
- Drinking water applications
Key features
- Supplied with two probes
- Automatic probe recognition
- On-screen operation guide
- Automatic Temperature Compensation
Supplied with
- HI-76302W conductivity probe and HI 3316D resistivity probe
- HI-70030 calibration solution sachet
- Calibration screwdriver
- Battery
- Instructions and hard carrying case
Läs mer
| Range | Resistivity | 0 to 19.90 MΩ•cm |
| Resolution | EC | 0.1 µS/cm; 1 µS/cm; 0.01 mS/cm; 0.1 mS/cm |
| Resolution | Resistivity | 0.10 MΩ•cm |
| Accuracy | EC | ±1% FS |
| Accuracy | Resistivity | ±2% FS |
| Calibration | Manual, 1 point, for both EC and resistivity | |
| Temperature Compensation | Automatic from 0 to 50°C with β selectable from 0 to 2.5%/°C for EC and from 2 to 7%/°C for resistivity | |
| Probes | HI 76302W3 for conductivity measurements; HI 3316D for resistivity measurements | |
| Battery Type / Life | (1) 9V (rechargeable) / Approx 100 hours of use | |
| Environment | 0 to 50°C (32 to 122°F); RH max 100% | |
| Dimensions | 164 x 76 x 45 mm (6.5 x 3.0 x 1.8") | |
| Weight | 250 g (8.8 oz.) |
