HI-768L AIR, GAS & LIQUID PT100 PROBE
HI-768L

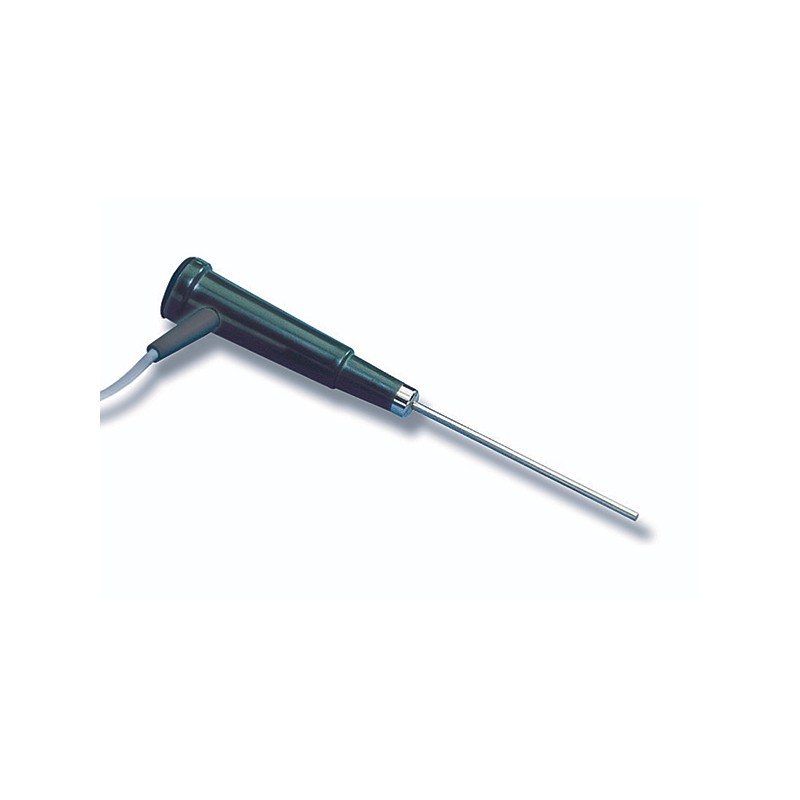

The HI-768L is an air and liquid Pt100 probe designed for use with one of Hanna’s Pt100 thermometers. A cable extends 1 m (3.3’) from the handle to the meter connection. The rounded tip of the probe allows users to obtain highly accurate temperature readings of air and liquid samples.
- Measures up to 350°C (622°F)
- Pt100 sensor
- AISI 316 stainless steel
The Air and Gas Pt100 Probe - HI-768L is designed to measure the temperature of air and liquid samples.
The operating principle of resistance thermometers is based on the increase of electric resistance of metal conductors (RTD: Resistance Temperature Detectors) with temperature.
Among the various metals to be used in the construction of RTDs, platinum (Pt), a noble metal, is one that can measure temperatures throughout a wide range with a stable, linear behaviour.
The most common RTD sensor using platinum is the Pt100. Hanna’s Pt100 thermometers and probes use multi-wire technology in the connection cable to obtain high levels of accuracy in industrial and laboratory applications.
With a strong, corrosion-resistant, AISI 316 stainless steel construction, the HI-768L probe is able to measure samples up to 350°C (622°F).
Läs mer
| Range | -30 to + 350°C | |
| Response Time | 30 seconds | |
| Accuracy | +/-0.25°C | |
| Sensor | Pt100 | |
| Probe | Stainless steel AISI 316 | |
| Dimensions | 205mm length x 5mm diameter |
