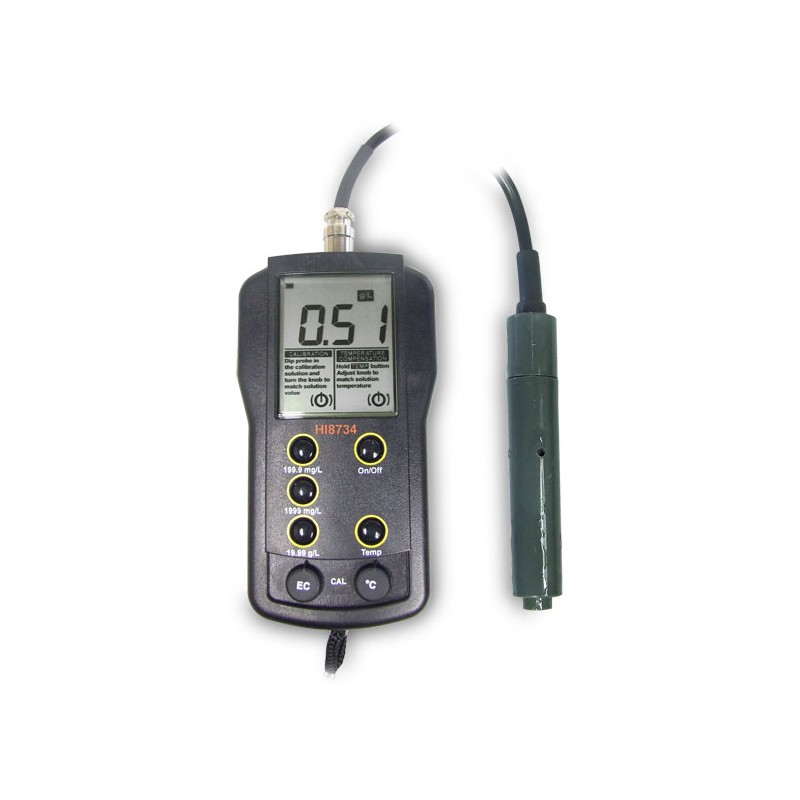

HI-8734 MULTI-RANGE TDS METER
HI-8734N
This portable total dissolved solids (TDS) meter offers 3 measurement ranges to suit a wide range of applications and is supplied complete with a robust probe on a 1m long cable. The effects of temperature can be manually compensated for via a rotary knob on the front of the meter.
The HI-8734 has not only been specifically designed for the water condition industry, but particularly in the softening, demineralisation, reverse osmosis and drinking water applications.
Three ranges of measurement ensure the highest accuracy possible. All three ranges can be executed at the touch of a button, without having to change the conductivity probe. This makes it very easy to switch applications without having to worry about recalibration.
To enhance accuracy and efficiency, MTC (Manual Temperature Compensation) is available using a knob on the front panel.
For the best protection in the field, the four ring potentiometric probe is made of rugged PVC. To access difficult areas, the probe is supplied with a 1m cable. The ratio between conductivity and TDS is factory set at 0.5.
Ideal for:
- Waste Water Testing
- Measurements in water with high conductivity content
Key features
- Water resistant
- Three measurement ranges
- Rugged probe for field use
Supplied with:
- HI-76301D conductivity probe
- HI-70032 1382 mg/L (ppm) calibration solution sachet
- Battery
- Instructions and rugged carrying case
Läs mer
| Range | 0.0 to 199.9 mg/L (ppm); 0 to 1999 mg/L (ppm); 0.00 to 19.99 g/L (ppt) | |
| Resolution | 0.1 mg/L (ppm); 1 mg/L (ppm); 0.01 g/L (ppt) | |
| Accuracy | ±1% F.S. (excluding probe error) | |
| Calibration | manual, 1 point | |
| Temperature Compensation | manual, 0 to 50°C (32 to 122°F) with ß=2%/°C | |
| Probe | HI 76301D with 1 m (3.3') cable (included) | |
| Battery Type / Life | 1 x 9V / approx. 100 hours of continuous use | |
| Environment | 0 to 50°C (32 to 122°F); RH max 100% | |
| Dimensions | 164 x 76 x 45 mm (6.4 x 3.0 x 1.8") | |
| Weight | 250 g (8.8 oz.) |
