HI-1413B GLASS BODIED FLAT PH ELECTRODE, BNC CONNECTOR.
HI-1413B

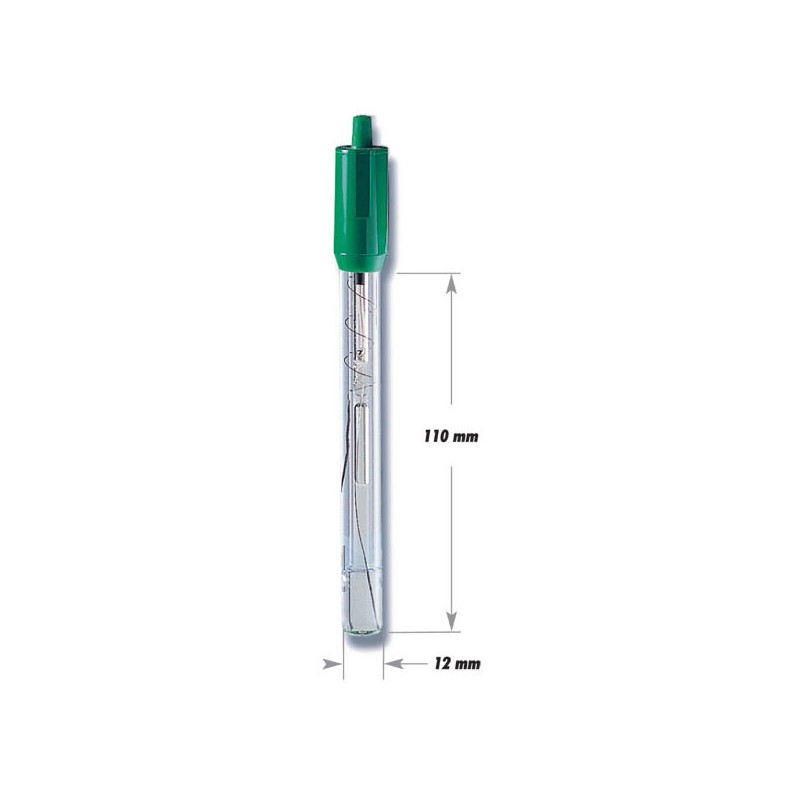

The HI-1413B is a glass body, single reference junction pH electrode made with low temperature glass and a BNC connector.
Flat tipped glass body pH electrode with open junction and BNC connector for special applications.
Ideal for
- Skin
- Leather
- Paper
- Emulsions
Supplied fitted with
- BNC connector
- 1m cable
This electrode has a unique open junction design in which there is a viscolene (hard gel) electrolyte layer that is free of silver chloride (AgCl) between the sample to be measured and the internal reference cell. The open junction design resists clogging and the probe’s flat tip makes it ideal for pH measurements on surfaces such as skin, leather, agar plates, and paper.
Läs mer
| Reference | Single, Ag/AgCl | |
| Junction | Open | |
| Connector | BNC | |
| Electrolyte | Viscolene | |
| Max Pressure | 0.1 bar | |
| Range | 0 to 12 pH; -5 to 50°C (23 to 122°F) | |
| Tip Shape | Flat | |
| Temperature Sensor | No | |
| Amplifier | No | |
| Body Material | Glass | |
| Cable | Coaxial; 1 m (3.3') | |
| Recommended Use | Surfaces, skin, leather, paper, emulsions |
