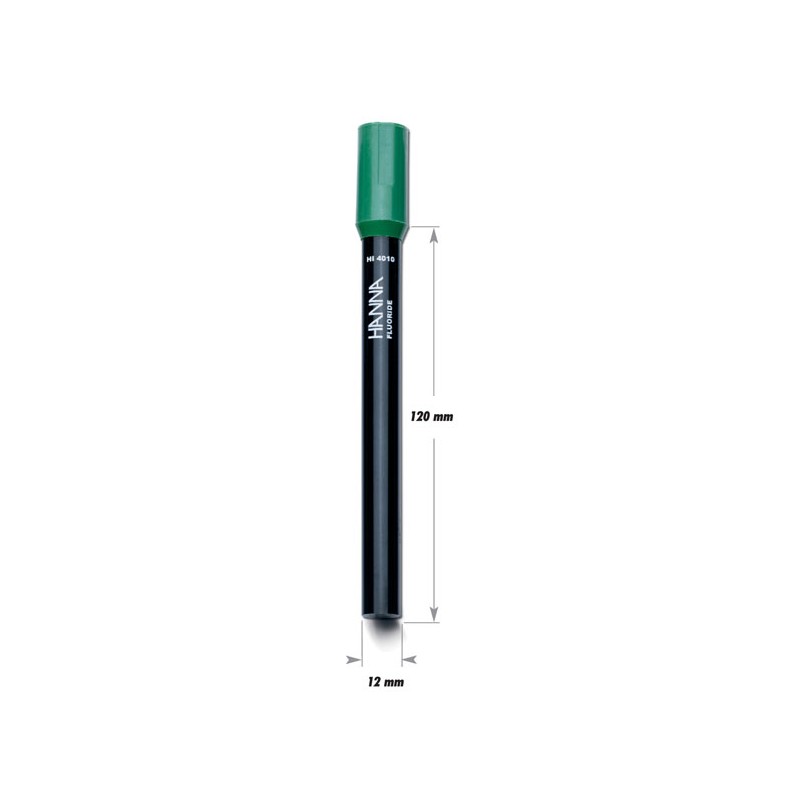

HI-4010 FLUORIDE HALF-CELL ISE
HI-4010
Ideal for use in drinking water treatment, environmental monitoring, and plating baths, the HI-4010 is a solid state, half-cell Ion Selective Electrode (ISE) used for the detection of fluoride (F-) in a solution.
The lanthanum fluoride crystal membrane produces a change due to the fluoride ion exchange between the membrane and the sample. The internal sensing elements are encased in a durable epoxy body.
Hanna’s solid state half-cell ISEs are designed for use with the HI-5315 reference half-cell.
BNC Connection – BNC is one of the most commonly used connector types in pH meters and electrodes. Compatible with any meter or electrode that uses BNC connectors.
Can also be used for:
- potable water
- soft drinks
- wine
- plants
- emulsified food products
- plating
- pickling acids
Läs mer
| Parameter | Fluoride | |
| Type | Solid-state; Half-cell | |
| Measurement Range | 1M to 1X 10-6M Sat to 0.02 ppm | |
| Optimum pH Range | 5 to 8 | |
| Temperature Range | 0 to 80°C | |
| Approximate Slope | -56 | |
| Body O.D. | 12 mm | |
| Insertion Length | 120 mm | |
| Body Material | PVC | |
| Cable | 1m coaxial | |
| Connector | BNC | |
| Possible Applications | Determination of free fluoride in potable water, soft drinks, wine, plants, emulsified food products, plating and pickling acids |
