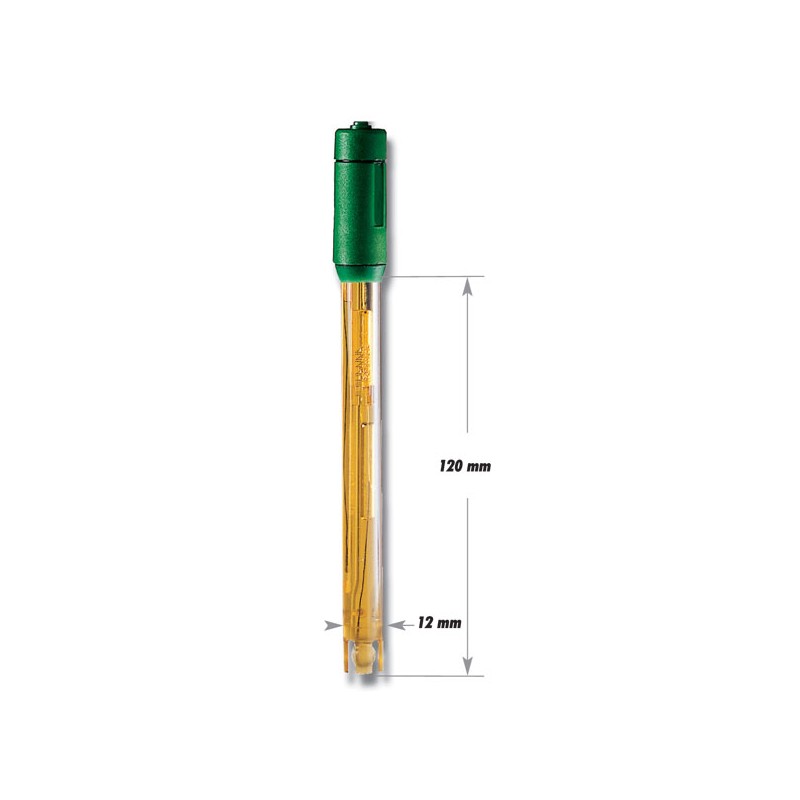

HI-2112B ULTEM BODY PH HALF CELL ELECTRODE
HI-2112B
The HI-2112B is a PEI body pH half-cell electrode with a BNC connector. This sensing electrode is made with general purpose glass and is to be used in conjunction with a reference half-cell electrode. This design consideration is ideal for general purpose measurements.
The HI-2112B is a pH half-cell electrode for general purposes. This electrode has a 1m cable and BNC connector. The HI-2112B uses general purpose (GP) glass, spherical bulb, and PEI body.
General Purpose Glass Formulation
General purpose glass as the name implies is a standard glass formulation that is used for general use. A pH electrode with general purpose (GP) glass will have a resistance of 100 megaohms at 25°C and is suited for measuring pH of samples that are at ambient temperatures. The HI-2112B is suitable to use with samples that measure from 0 to 70°C.
Spherical Bulb
The spherical bulb is for general purpose use. Other tip shapes include conic for penetration and flat tip for surface measurements.
PEI Body
The body of the HI-2112B is composed of polyetherimide (PEI) resin. The PEI body is suitable for a wide range of applications and excels in field measurements due to its durability. The shielding around the spherical glass tip minimizes breakage due to accidental bumping or dropping of the electrode. The PEI plastic is a high quality plastic that is chemically resistant to many aggressive chemicals.
BNC Connector
The HI-2112B uses a BNC connector. This type of connector is universal in that it can be used on any pH meter that has the female BNC probe input. Other type of connectors include DIN, screw type, T-type, and 3.5mm to name a few. These types of connectors tend to be proprietary for a particular type of meter and are not interchangeable.
Läs mer
| Description | pH Half-cell | |
| Range | pH: 0 to 13 | |
| Recommended operating temp | 0 to 100°C | |
| Tip/Shape | spheric (dia: 7.5mm) | |
| Body material | PEI | |
| Cable | coaxial | |
| Recommended use | general purpose | |
| connection | BNC |
