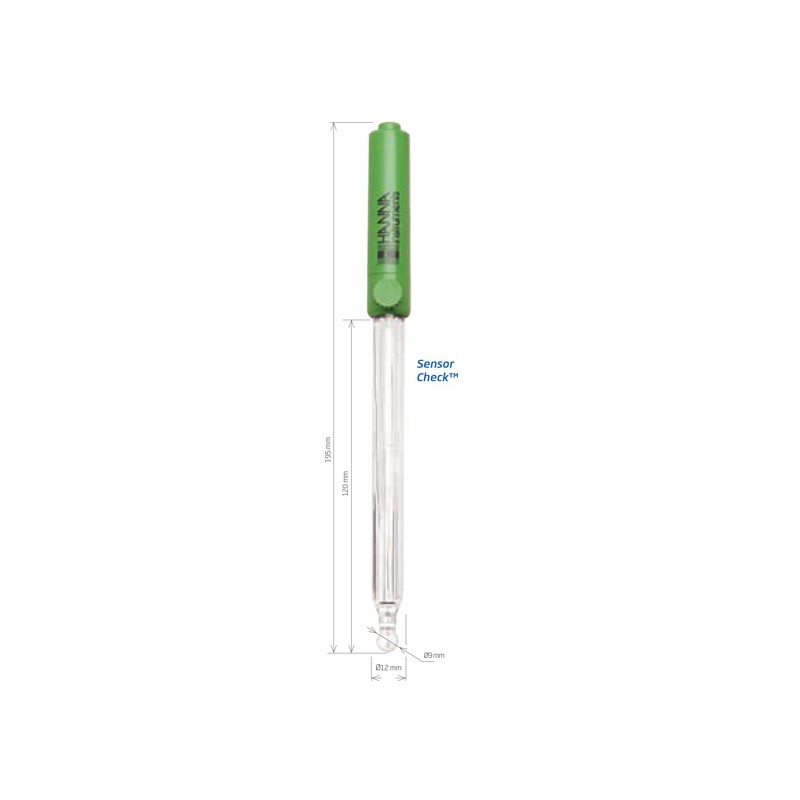

HI-11311 PH EDGE ELECTRODE WITH SENSOR CHECK™
HI-11311
The HI-11311 is a smart pH electrode with Sensor Check™ for use with the HI-2020 Edge hybrid meter.
The HI-11311 electrode features a built-in microchip that stores sensor type, ID, and calibration information that is automatically retrieved by Edge once the electrode is plugged in.
Stored pH calibration information includes: calibrated buffers, date, time, offset and slope characteristics of the electrode.
The HI-11311 features an easy to plug in 3.5mm connector and is recommended for use in laboratories and as a general purpose pH electrode.
When HI-11311 is used with Edge the impedance of the pH measuring electrode is checked in real-time to notify you in the event of glass breakage. During calibration Sensor Check™ technology checks the state of the junction. The reference junction is also evaluated and reported on the display.
3.5 Connection – Phono plug electrode connection used on HANNA smart Edge electrodes. Provides a secure, easy-to-use connection.
All electrodes and probes have 6 months warranty.
Läs mer
| Description | refillable, combination, digital pH electrode w/ Sensor Check™ | |
| Reference | double, Ag/AgCl | |
| Junction | ceramic, single/ 15-20 uL/h | |
| Electrolyte | KCI 3.5M | |
| Max Pressure | 0.1 bar | |
| Range | pH: 0 to 13 | |
| Recommended Operating Temp. | -5 to 100°C | |
| Tip/Shape | spheric (dia: 9.5mm) | |
| Temperature Sensor | yes | |
| Matching Pin | yes | |
| Amplifier | yes | |
| Body Material | glass | |
| Cable | 1m | |
| Recommended Use | Laboratory, general purpose, beer | |
| Connection | 3.5mm jack |
