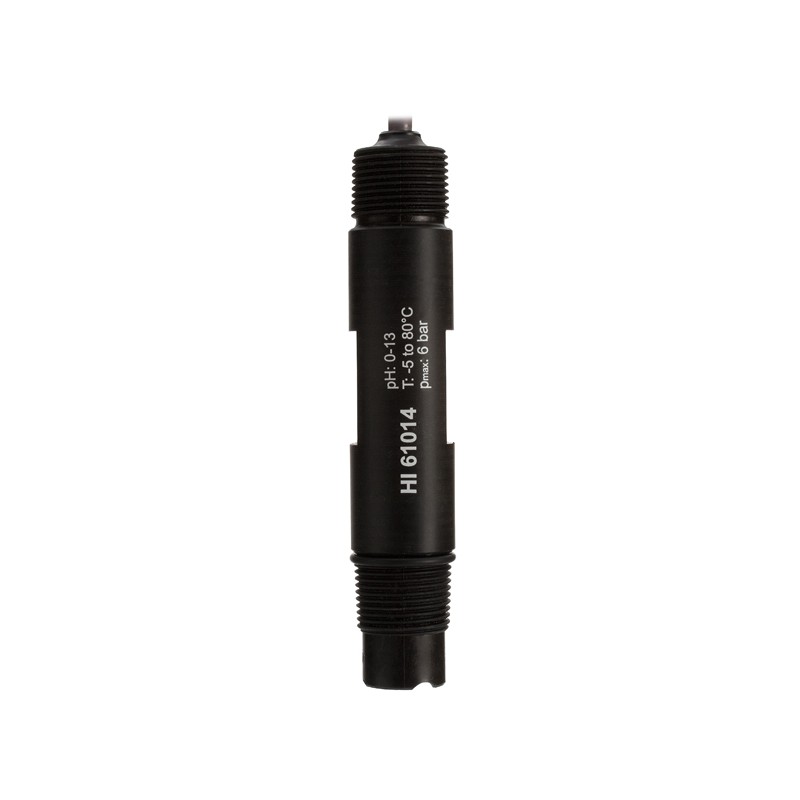

HI-6101415 AMPHEL® FLAT-TIP PH ELECTRODE - GENERAL PURPOSE, 15M CABLE, PT100 TEMPERATURE SENSOR, BNC
HI-6101415
This amplified pH electrode is designed for industrial applications with features such as a PTFE junction, Pt100 temperature sensor, and PVDF body. With its durable design, you can count on this electrode to stand up to your process environment.
HI-6101415 AmpHel® Flat-tip pH Electrode - General Purpose, 15m Cable, Pt100 Temperature Sensor, BNC + Lead Connector
- Flat-tip pH electrode
- General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications
- Built for everyday, demanding use in industrial applications
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
BNC + lead connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
General purpose glass formulation
General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
PVDF body
PVDF offers characterised by high thermal stability and excellent chemical resistance.
Built-in Pt100 temperature sensor
Ensures fast, accurately compensated readings even during sudden temperature fluctuations.
Läs mer
| Sensor Type | Pt100 | |
| Junction / Flow Rate | Double, PTFE | |
| Measurement Range | pH: 0-13 | |
| Type of Electrolyte | Polymer | |
| Body Material | PVDF | |
| Tip / Shape | Flat | |
| Glass Type | GP (-5 to 80°C) | |
| Matching Pin | Yes | |
| Temperature Sensor Type | Pt100 | |
| Max. Pressure | 6 bar (87 psi) | |
| Temperature Sensor | Yes | |
| Cable | 15m | |
| Connector | BNC + lead | |
| Amplifier | No |
