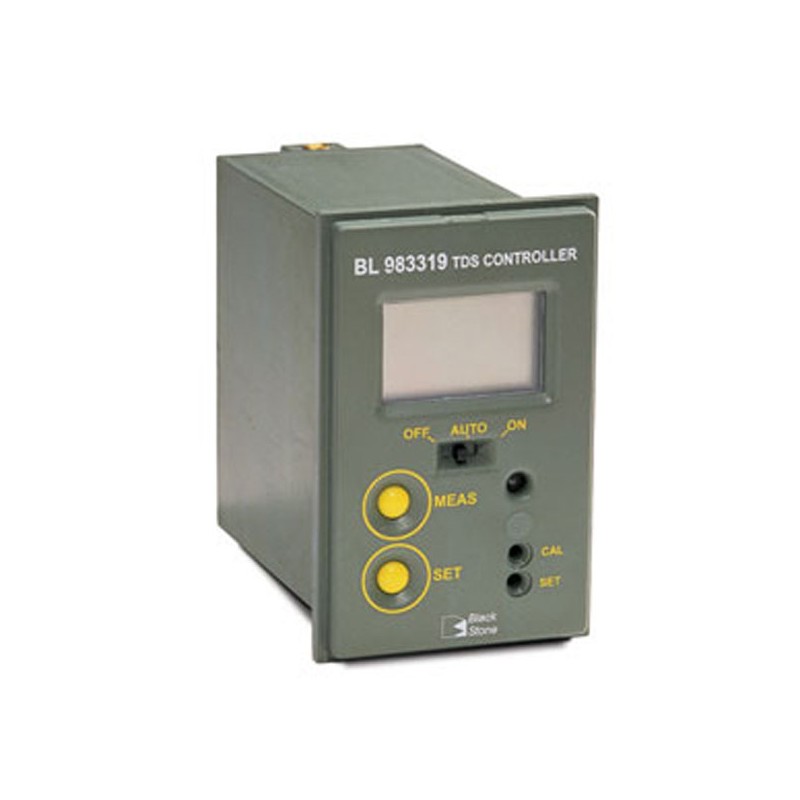

BL-983319-0 MINI TDS CONTROLLER 0 TO 1999 PPM
BL-983319-0
This instrument has been designed for TDS Control in hydroponics, horticulture and water conditioning. Compact in size, they can be mounted in confined spaces or even right next to the vat or barrel containing the chemicals.
These meters permit automatic control of installations that were previously checked manually.
This meter is no longer supplied with an electrode, the HI-7634-00 can be ordered as an additional item.
Readings are shown on the display and the multi-coloured LED continuously indicates if the mini-controller is in measurement, dosing or alarm mode.
Users can choose automatic or manual dosing mode with a switch on the front panel. Manual control is particularly useful during maintenance operations, because it permits operators to enable or disable the dosing relay according to your need.
The overtime control system advises users when the relay is active too long, helping to prevent over-dosage.
Läs mer
| Range | 0.0 to 199.9 µS/cm | |
| Resolution | 0.1 µS/cm | |
| Accuracy | ±2% F.S. | |
| TDS Conversion Factor | 0.5 | |
| Probe | HI-7634-00 (not included) | |
| Temperature Compensation | Automatic, 5 to 50°C (41 to 122°F) with ß = 2%/°C | |
| Calibration | manual, with CAL trimmer | |
| Dosing Relay | max 2A (fuse protected), 250 Vac | |
| Dosing Selection | Relay activated (contact closed) when the measurement reading is greater than the setpoint | |
| Setpoint | adjustable from 0 to 199.9 µS/cm | |
| Overtime | adjustable, typically from 5 to approx. 30 minutes | |
| Power Supply | 12 VDC adapter (included) | |
| Dimensions | 83 x 53 x 99 mm (3.3 x 2.1 x 3.9") | |
| Weight | 200 g (7.1 oz.) |
