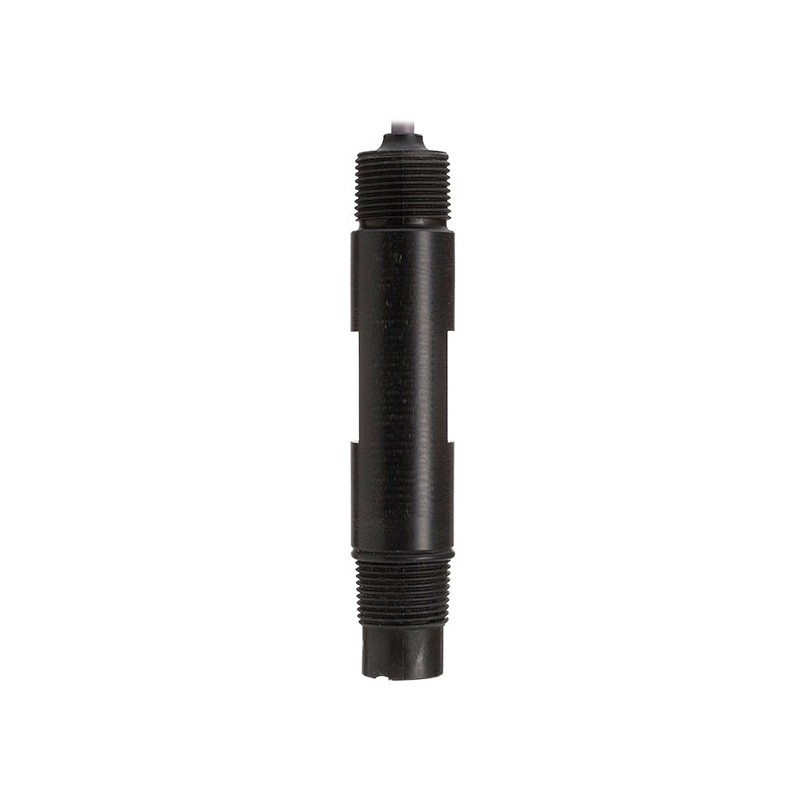

HI-2004-1007 INDUSTRIAL FLAT TIP ORP ELECTRODE, PTFE JUNCTION, PT SENSOR, BNC
HI-2004-1007
These flat tipped ORP electrodes are designed for industrial applications with features such as a PTFE junction and platinum sensor. With its durable design, you can count on this electrode to stand up to your process environment.
Industrial Flat Tip ORP electrode, PTFE junction, Pt sensor, BNC connector, 7 m cable.
- ORP electrode with exclusive PTFE non-clogging membrane
- Self-cleaning flat tip sensor
- Built for everyday, demanding use in industrial applications
Flat tip
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
PVDF body
PVDF withstands high pressure and high temperature applications, and guarantees a high chemical and mechanical resistance.
Sensor Type
Platinum sensor provides the best response over a wide range of applications while gold sensors are required for measurement of cyanide or highly oxidative environments.
Internal matching pin
Avoid typical problems caused by grounding loop current, such as progressive damage of the electrode, fluctuating measurements, and poor process regulation.
Läs mer
Junction Type/Flow Rate | PTFE | |
Type of Electrolyte | Polymer | |
Body Material | PVDF | |
Tip / Shape | Flat | |
Matching Pin | Yes | |
Max. Pressure | 6 bar (87 psi) | |
Overall Length | 150mm | |
Temperature Sensor | No | |
Cable | Varied based on model | |
Connector Type | BNC | |
Amplifier | No |
